FUEL TANK [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0114m1104100


Purpose, Function

•  Store fuel safely and supply fuel to the engine.

Construction

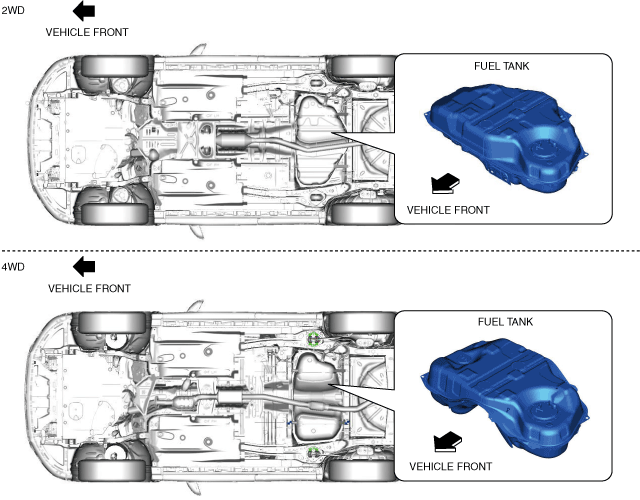

•  The fuel tank is installed below the rear seat.
ac5wzn00003839
•  The fuel tank is made of steel.

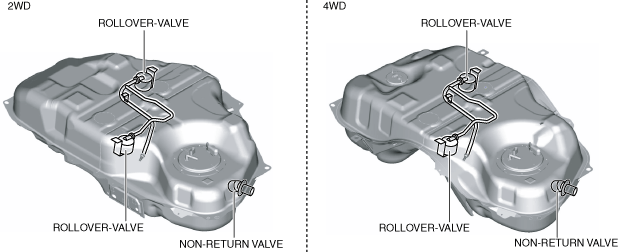

•  The following parts are integrated in the fuel tank.
―  Non-return valve
(See NON-RETURN VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
―  Rollover valve
(See ROLLOVER VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
ac5wzn00003840
