FUEL PUMP UNIT INSPECTION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0114m1801100

Continuity Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the fuel pump unit connector.

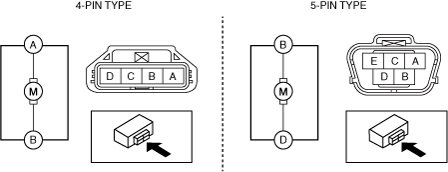

3.  Inspect for continuity between fuel pump unit terminals A—B(FUEL PUMP UNIT CONNECTOR 4-PIN TYPE) / B—D(FUEL PUMP UNIT CONNECTOR 5-PIN TYPE).

ac5wzw00013925

•  If there is no continuity, replace the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
