FUEL PUMP CONTROL MODULE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0114m2003900


Purpose, Function

•  Controls the voltage applied to the fuel pump for reducing fuel pump load and improving fuel economy.
•  Controls the voltage applied to the fuel pump based on the control signal from the PCM.

Construction

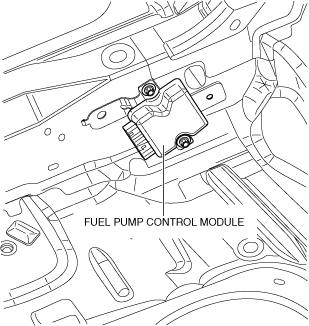

•  The fuel pump control module is installed below the rear seat.
ac5wzn00001090

Operation

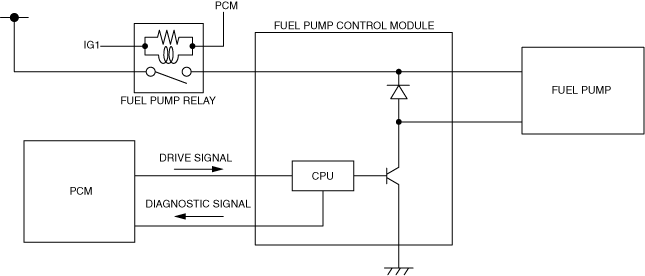

•  Controls the voltage applied to the fuel pump based on the control signal from the PCM. In addition, the on-board diagnostic function is equipped and if there is a malfunction in the fuel pump control module, a diagnostic signal is sent to the PCM. The PCM stores a DTC if necessary according to the received diagnostic signal.
am3uun00002127
•  For the fuel pump control module, refer to CONTROL SYSTEM. (See FUEL PUMP CONTROL [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Fail-safe

P025B:00
•  Stops fuel pump control. (If overheating is detected in fuel pump control module).
P0629:00
•  Stops the fuel pump control.
