SUB RELAY [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0114m2135100

Purpose, Function

• Supplies power to the PCM for the fuel injector and spill valve control solenoid valve operation.

Construction

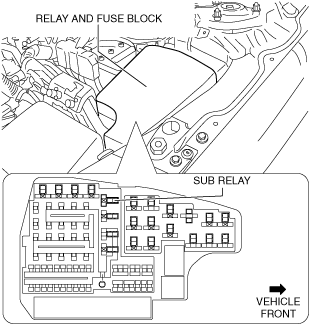

• The sub relay is installed in the relay and fuse block.

ac5wzn00004585

• A normally open relay has been adopted for the sub relay. When electric current flows to the coil, the contact point is drawn by the generated electromagnetic power and switches on.

amxuun00001499

Operation

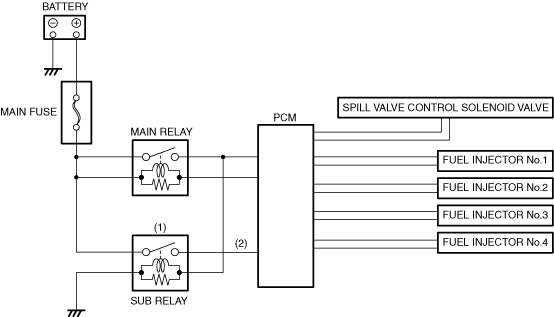

1. The contact point is on (1) when the sub relay coil is energized by the battery power from the main relay.

2. Power is supplied (2) to the PCM for the fuel injector and the spill valve control solenoid valve operation.

ac5wzn00004586

Fail-safe

• Function not equipped.
