FUEL TANK [SKYACTIV-D 2.2]

id0114z7104100


Purpose, Function

•  Made of steel for weight reduction.

Construction

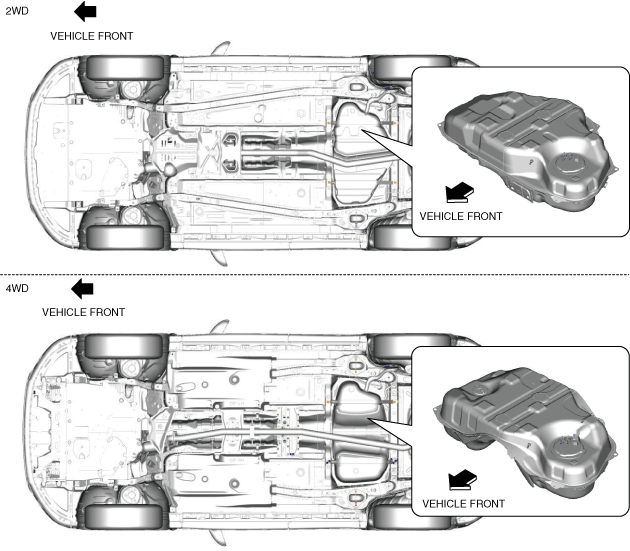

•  The fuel tank is installed below the rear seat.
ac5wzn00003877
•  The fuel tank is made of steel.

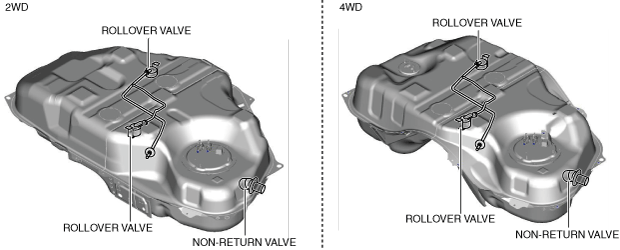

•  The following parts are integrated in the fuel tank.
―  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-D 2.2].)
―  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-D 2.2].)
ac5wzn00003878
