COMMON RAIL [SKYACTIV-D 2.2]

id0114z7707300

Purpose, Function

• Stores high pressure fuel from the supply pump and distributes it to the fuel injectors.

Construction

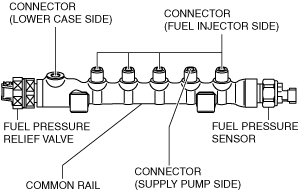

Fuel injector (2pin type)

• The common rail is installed to the engine compartment.

• The common rail has an integrated fuel pressure relief valve and fuel pressure sensor.

ac5wzn00000192

Fuel injector (6pin type)

• The common rail is installed to the engine compartment.

ac8wzn00000178

• The common rail has an integrated fuel pressure relief valve.

ac8wzn00000179

Fuel pressure relief valve

• If the pressure in the common rail exceeds a certain value, fuel is discharged.

Fuel pressure sensor (fuel injector (2pin type))

• Detects the fuel pressure in the common rail.
