FUEL PRESSURE RELIEF VALVE [SKYACTIV-D 2.2]

id0114z7707800

Purpose, Function

• If the pressure in the common rail exceeds a certain value, fuel is discharged to assure safety.

Construction

• The fuel pressure relief valve is installed to the common rail.

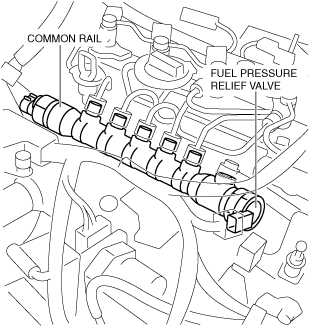

Fuel injector (2pin type)

ac5wzn00002244

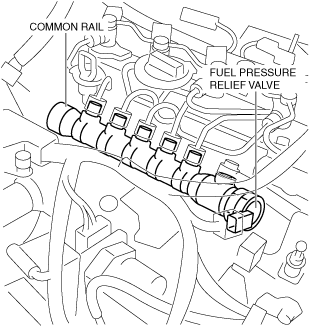

Fuel injector (6pin type)

ac8wzn00000184

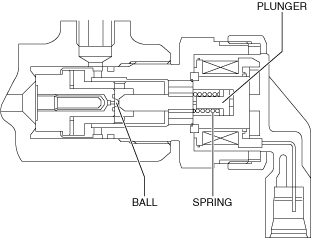

• The fuel pressure relief valve consists of a spring, ball, and plunger.

ac5wzn00002245

Operation

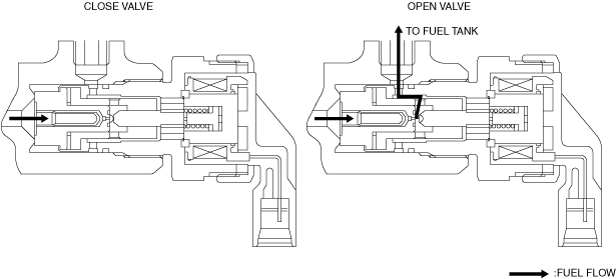

• According to the control signal from the PCM, the coil is energized and the plunger is operated to open the fuel passage.

ac5wzn00002246

• The fuel passage opens and the pressure in the common rail flows to the lower case side.

ac5wzn00002247

Fail-safe

DTC

Fail-safe

P062A:00

•  PCM restricts engine torque.

•  PCM restricts fuel pressure. (high pressure side).

•  Inhibits engine-stop by operating the i-stop function.
