EXHAUST SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0115m1125800

Outline

• A high compression ratio has been realized by adopting 4-2-1 exhaust pipes and reducing residual gas in the cylinders.

• The loop structure of the exhaust pipes for the 4-2-1 system takes up less space.

Structural View

Without coolant control valve

ac5wzn00004272

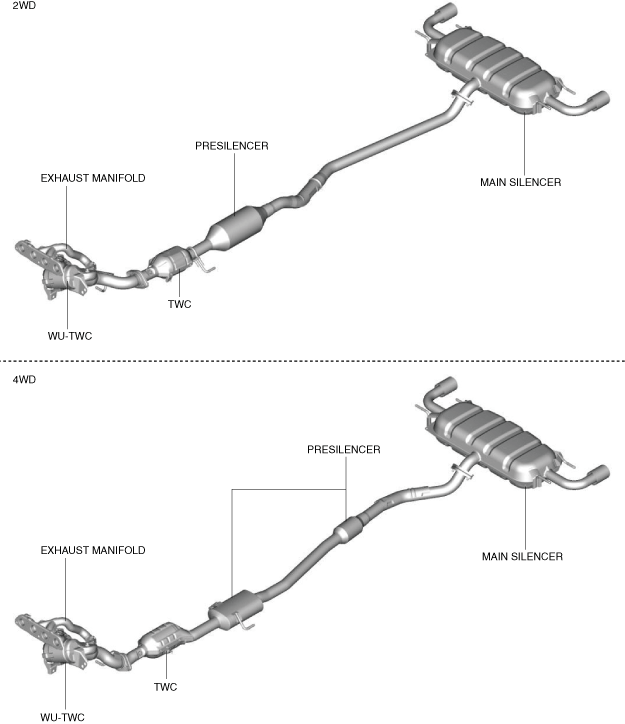

With coolant control valve

ac5wzn00004921

System Diagram

ac5wzn00004464

Structure

• The exhaust system consists of the following parts:

Part name	Reference
Main silencer	(See MAIN SILENCER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Presilencer	(See PRESILENCER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
TWC	(See CATALYTIC CONVERTER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
WU-TWC
Exhaust manifold	(See EXHAUST MANIFOLD [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
