EXHAUST SYSTEM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0115m2125800

Outline

• An exhaust shutter valve has been adopted to suppress booming noise during cylinder deactivation.

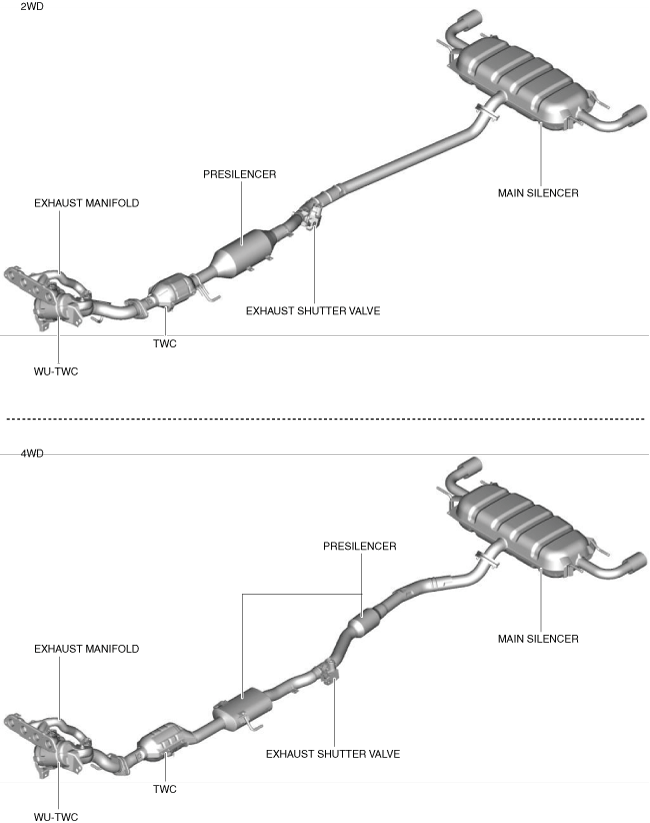

Structural View

ac5wzn00004912

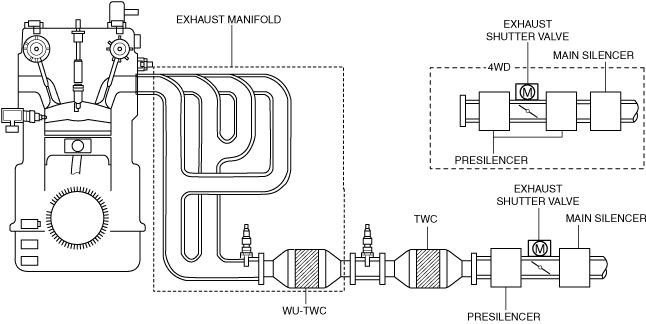

System Diagram

ac5wzn00005452

Structure

• The exhaust system consists of the following parts:

Part name	Reference
Main silencer	(See MAIN SILENCER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Presilencer	(See PRESILENCER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
TWC	(See CATALYTIC CONVERTER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
WU-TWC
Exhaust manifold	(See EXHAUST MANIFOLD [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Exhaust shutter valve	(See EXHAUST SHUTTER VALVE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
