EXHAUST SYSTEM [SKYACTIV-D 2.2]

id0115z7125800

Outline

Fuel injector (2pin type)

• By employing an exhaust gas passage in the cylinder head, the exhaust manifold has been eliminated.

Fuel injector (6pin type)

• Purifies exhaust gas via the catalytic converter, and reduces exhaust noise using the main silencer.

Structural view

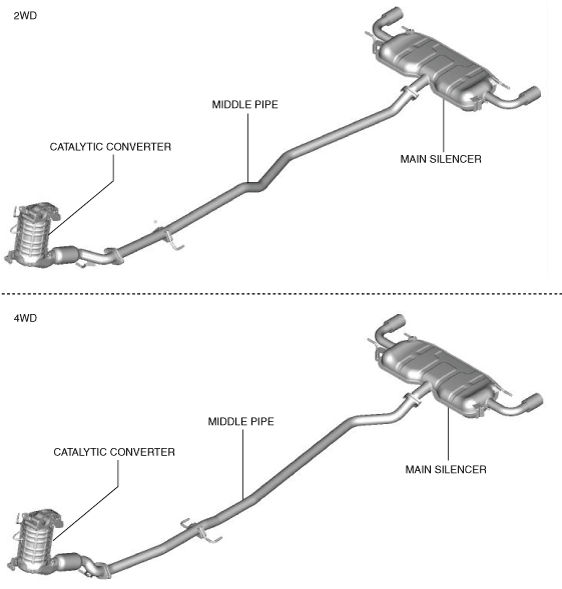

Without SCR system

ac5wzn00003880

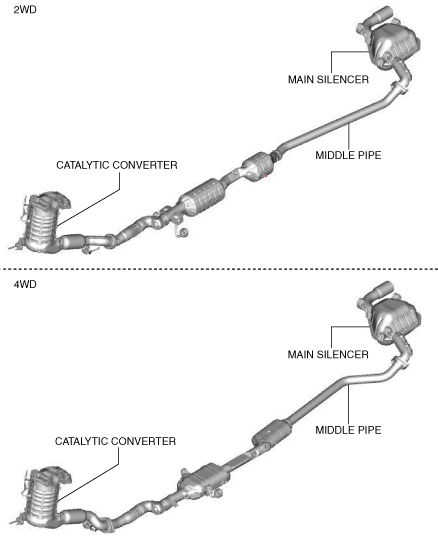

With SCR system

ac5wzn00005000

System diagram

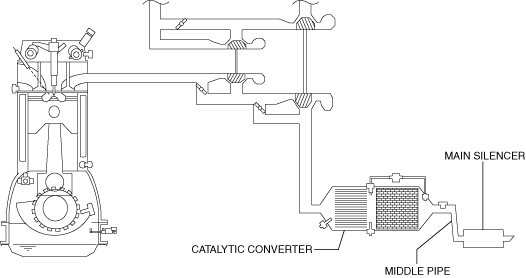

Fuel injector (2pin type)

ac5wzn00001973

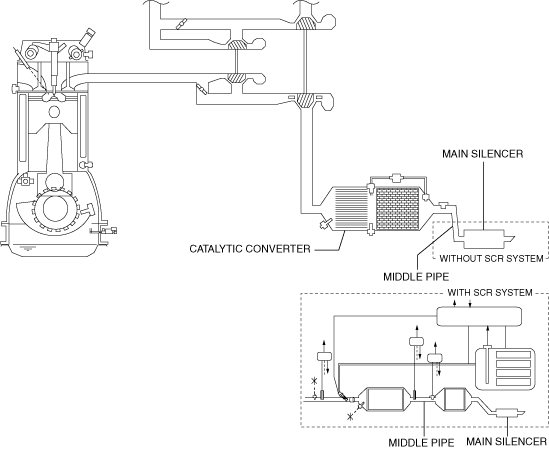

Fuel injector (6pin type)

am6zzn00005648

Structure

• The exhaust system consists of the following parts:

Part name

Reference

Main silencer

(See MAIN SILENCER [SKYACTIV-D 2.2].)

Middle pipe

―

Catalytic converter

(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)

Part name	Reference
Main silencer	(See MAIN SILENCER [SKYACTIV-D 2.2].)
Middle pipe	―
Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)

• Noise suppression material is employed on the inside of the catalytic converter insulator and the internal surface of the catalytic converter to reduce noise.

Fuel injector (2pin type)

ac5wzn00001974

Fuel injector (6pin type)

ac5wzn00005001
