EGR VALVE [SKYACTIV-D 2.2]

id0116e1112500

Purpose, Function

• The amount of exhaust gas passed through the EGR cooler, which is re-circulated to the intake manifold, is adjusted.

Construction

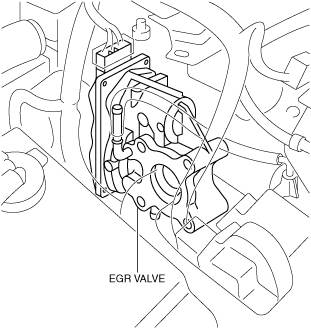

• The EGR valve is installed to the intake manifold.

ac5wzn00002258

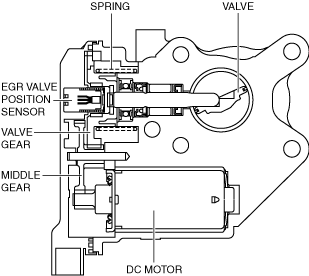

• The EGR valve consists of the DC motor, valve, spring, valve gear, and mid gear.

• The EGR valve has an integrated EGR valve position sensor. (See EGR VALVE POSITION SENSOR [SKYACTIV-D 2.2].)

ac5wzn00002259

Operation

• The PCM drives the DC motor of the valve by the pulse-width modulation signal.

ac5wzn00002260

• Control of exhaust gas temperature is enabled by cooperative control of the EGR cooler bypass valve.

Fail-safe

DTC

Fail-safe

P0404:00

•  Limits engine torque.

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the EGR control.

•  Inhibits engine-stop by i-stop control.
