•  The check valve maintain the pressure in the fuel tank at constant pressure.

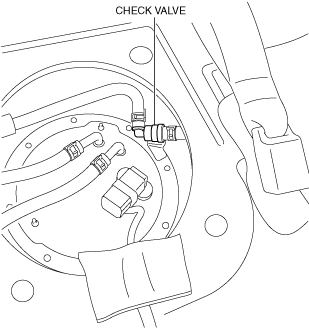

•  The check valve is installed to the fuel tank.

ac5wzn00002267

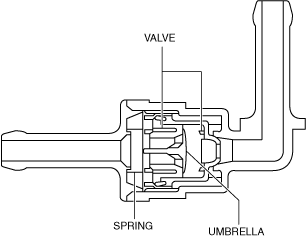

•  Mainly consists of valve, umbrella, and spring.

ac5wzn00002268

•  The valve moves in response to the difference in air pressure between the fuel tank side and the atmospheric side, thereby changing the path of airflow.

•  When the pressure in the fuel tank becomes negative due to fuel consumption or other factors, the path opens, drawing atmospheric air into the fuel tank.
