AdBlue® REPLACEMENT [SKYACTIV-D 2.2]

id0116e1274800

Note
•  The replenishment amount (reference) according to the AdBlue® level (%) indication is as follows:

Percentage (%) indication for remaining amount

Reference replenishment amount*1
100—85
Replenishment unnecessary
80—70
about 4.0 L {1.1 US gal, 0.88 Imp gal}
65—60
about 5.0 L {1.3 US gal, 1.1 Imp gal}
55—50
about 6.0 L {1.6 US gal, 1.3 Imp gal}
45—35
about 7.0 L {1.8 US gal, 1.5 Imp gal}
30—25
about 8.0 L {2.1 US gal, 1.8 Imp gal}
25—15
about 9.0 L {2.4 US gal, 2.0 Imp gal}
10—0
about 10.0 L {2.64 US gal, 2.20 Imp gal}

*1  :Even if AdBlue® is added at the indicated replenishment amount, 100 % may not be indicated on the display.

1.  Remove the urea tank cover No.1. (See UREA TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

2.  Disconnect the joint hose (urea tank side). (See UREA TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

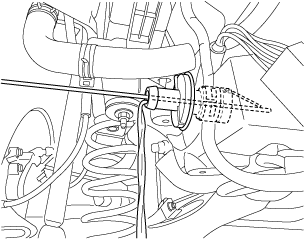

3.  Drain the AdBlue® as shown in the figure.

ac5uuw00008407

4.  Completely drain the remaining AdBlue® in the urea tank using a hand-operated pump.

5.  Connect the joint hose (urea tank side). (See UREA TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

6.  Install the urea tank cover No.1. (See UREA TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

7.  Open the fuel-filler lid.

8.  Open the urea-filler cap.

9.  Refill the AdBlue®.

10.  After replacing the AdBlue® in the urea tank, perform the following procedure so that the vehicle can detect the amount of AdBlue® in the urea tank again.

Using M-MDS
1.  Connect the negative battery terminal. (SeeNEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2.  Connect the M-MDS to the DLC-2.
3.  After the vehicle is identified, select the following item from the initial screen of the M-MDS.
1.  Select the “Powertrain”.
2.  Select the “SCR”.
3.  Select the “SCR function”.
4.  Select the “Reset for urea tank level”.
Without using M-MDS
1.  Drive the vehicle for 1.5 to 2.0 hours at 2 km/h {1 mph} or more.
