EXHAUST GAS PURIFICATION SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0116m1113400


Purpose, Outline

•  Purifies contaminants (HC, CO, NOx) in the exhaust gas by utilizing the chemical reactions of the three-way catalytic converter.

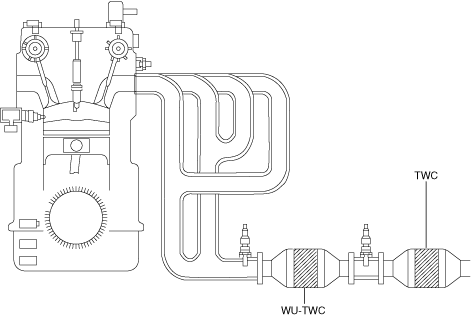

System Diagram

ac5wzn00004942

Structure

•  The exhaust gas purification system consists of the following parts:

Part name

Reference
WU-TWC
(See CATALYTIC CONVERTER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
TWC
