PURGE SOLENOID VALVE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0116m2112300

Purpose, Function

• Introduces evaporative gas absorbed by the charcoal canister to the intake manifold.

• The purge solenoid valve opens according to the control signal from the PCM.

Construction

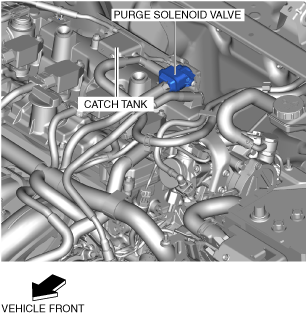

• The purge solenoid valve is located near the catch tank.

ac5wzn00004524

• The purge solenoid valve consists of a coil, spring, and plunger.

ac5wzn00002237

Operation

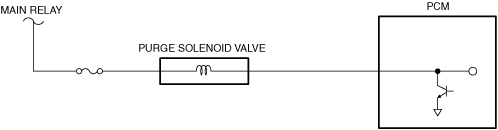

• According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the purge solenoid valve.

ac5wzn00002238

• When the purge solenoid valve is open, evaporative gas flows from the charcoal canister to the intake manifold side.

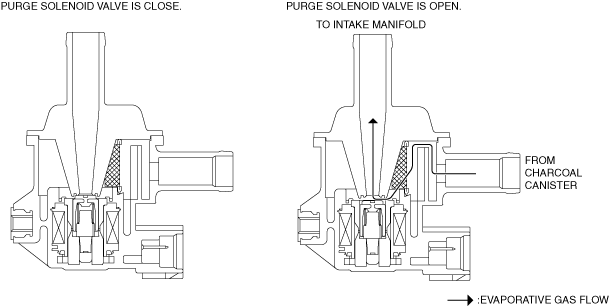

Purge solenoid valve open/closed view

ac5wzn00002239

• For evaporative purge control details, refer to CONTROL SYSTEM. (See PURGE CONTROL [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Fail-safe

• Function not equipped.
