ROLLOVER VALVE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]
id0116m2122900
Purpose, Function
• Prevents fuel from flowing into the evaporative gas passage during sudden cornering or vehicle rollover.
Construction
• The rollover valve is built into the fuel tank.
• The rollover valve consists of a float, O-ring and spring.

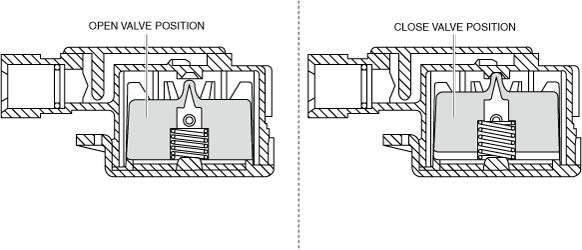

Operation
• The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.
