CATCH TANK [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]
id0116m2174500
Purpose, Function
• Suppresses pulsation occurring before evaporative gas is inducted into the intake manifold.
Construction

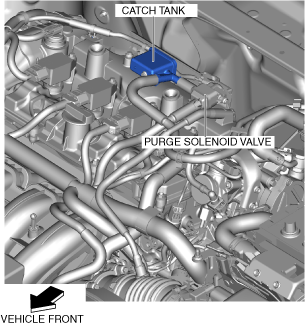

• The catch tank is located near the purge solenoid valve.
Operation
• When evaporative gas flows from the charcoal canister to the purge solenoid valve, pulsation is suppressed by passing the evaporative gas through the hollowing of the catch tank.
