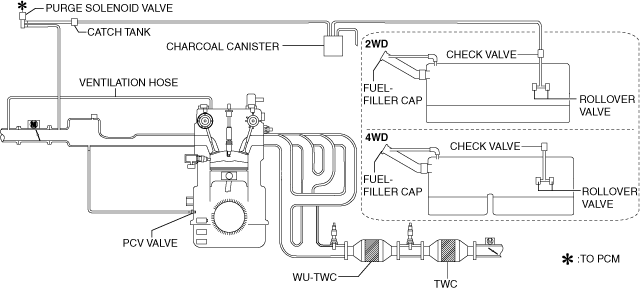

EMISSION SYSTEM DIAGRAM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

EMISSION SYSTEM DIAGRAM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0116m2803600

ac5wzn00005030
