EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.5T]

id0116q4113400

Outline

• The exhaust gas purification system purifies contaminants (HC, CO, NOx) in the exhaust gas by utilizing the chemical reactions of the three-way catalytic converter.

• Two types of catalytic converters, a warm-up three-way catalyst and a three-way catalyst, have been adopted to enhance purification performance in all areas from directly after engine start to high temperature.

Structure

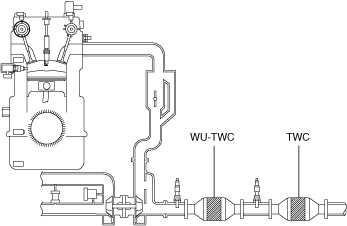

System diagram

ac9uun00003089

• The exhaust gas purification system consists of the following parts:

Part name

Reference

WU-TWC

(See CATALYTIC CONVERTER [SKYACTIV-G 2.5T].)

TWC

Part name	Reference
WU-TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 2.5T].)
TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 2.5T].)
