EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0116q4810000

Replacement Part

Gasket

Quantity: 1

Location of use: EGR pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Remove the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

5.  Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

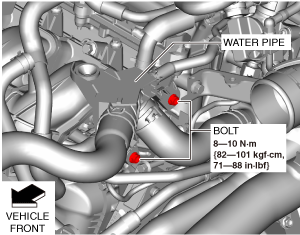

6.  Remove the bolts shown in the figure and set the water pipe aside.

ac9uuw00009362

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

ac9uuw00009363

1
Water hose No.1
(See Water Hose No.1 Installation Note.)
2
Water hose No.2
(See Water Hose No.2 Installation Note.)
3
EGR pipe


Water Hose No.2 Installation Note

1.  Install the water hose No.2 as shown in the figure.

ac9uuw00009618


Water Hose No.1 Installation Note

1.  Install the water hose No.1 as shown in the figure.

ac9uuw00009619
