GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2]

id0117008004h6

Special Service Tool (SST)

1: 49 L018 002
2: –

Serrated bit

Caution
•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

Generator type A

ac5wzw00005331

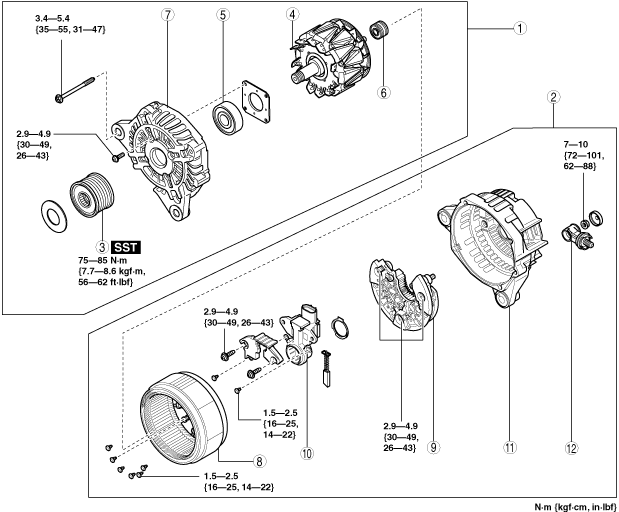

Generator type B

ac5wzw00013742

1
Rotor component
2
Stator coil component
3
Pulley
(See Pulley Disassembly/Assembly Note.)
4
Rotor
5
Front bearing
6
Rear bearing
7
Front cover
8
Stator coil
9
Rectifier
10
Regulator component
11
Rear cover
12
Terminal B component


Pulley Disassembly/Assembly Note

1.  Disassemble/assemble the pulley using the SST.

am3uuw00006095

Tightening torque
75—85 N·m {7.7—8.6 kgf·m, 56—62 ft·lbf}
