1: 49 L018 002
2: –
Serrated bit
GENERATOR DISASSEMBLY/ASSEMBLY [WITHOUT i-ELOOP (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))]
id0117008004m3
Special Service Tool (SST)
|
1: 49 L018 002
2: –
Serrated bit
|
|
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

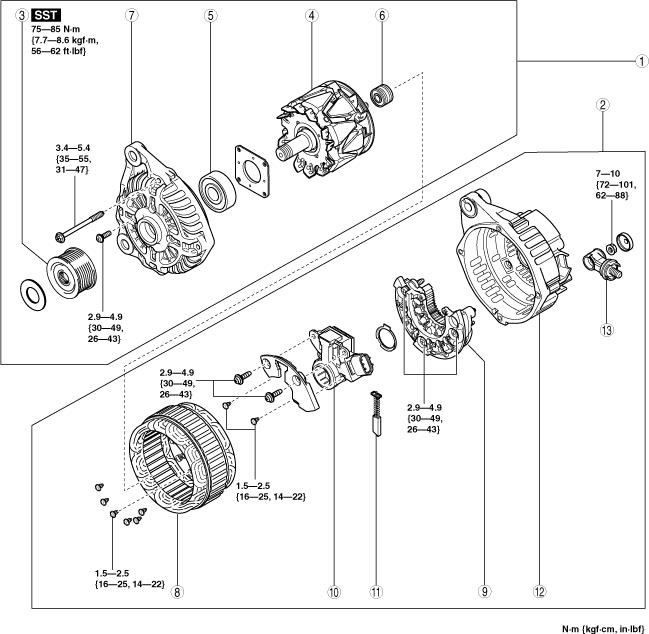

SKYACTIV-G 2.0
ac5wzw00014125
|
|
1
|
Rotor component
|
|
2
|
Stator coil component
|
|
3
|
Pulley
|
|
4
|
Rotor
|
|
5
|
Front bearing
|
|
6
|
Rear bearing
|
|
7
|
Front cover
|
|
8
|
Stator coil
|
|
9
|
Rectifier
|
|
10
|
Brush holder
|
|
11
|
Brush
(See Brush Disassembly Note.)
(See Brush Assembly Note.)
|
|
12
|
Rear cover
|
|
13
|
Terminal B component
|
SKYACTIV-G 2.5 (Generator type A)
am2zzw00012376
|
SKYACTIV-G 2.5 (Generator type B)
ac5wzw00013744
|
|
1
|
Rotor component
|
|
2
|
Stator coil component
|
|
3
|
Pulley
|
|
4
|
Rotor
|
|
5
|
Front bearing
|
|
6
|
Rear bearing
|
|
7
|
Front cover
|
|
8
|
Stator coil
|
|
9
|
Rectifier
|
|
10
|
Brush holder
|
|
11
|
Brush
(See Brush Disassembly Note.)
(See Brush Assembly Note.)
|
|
12
|
Rear cover
|
|
13
|
Terminal B component
|
Pulley Disassembly/Assembly Note
1. Disassemble/assemble the pulley using the SST.
am3uuw00006095
|
Brush Disassembly Note
am2zzw00013282
|
1. Melt the solder and remove the brush from the brush holder.
Brush Assembly Note
am2zzw00013282
|
1. Press the brush into the brush holder with it facing in the direction shown in the figure.
am2zzw00013283
|
2. Solder the brush to the brush holder.
