BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING)

id011700801000

Note

• The battery condition initial setting (i-stop setting) procedures differ according to the applied VIN.

― Battery Condition Initial Setting (i-stop setting) Procedure A [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.5), SKYACTIV-G 2.5T] (See Battery Condition Initial Setting (i-stop setting) Procedure A [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.5), SKYACTIV-G 2.5T].)

• JM0 KF2W***# 100000―300000

• JM0 KF4W***# 100000―

• JM6 KF2W***# 100000―300000

• JM7 KF2W***# 100000―300000

• JM7 KF4W***# 100000―300000

• JMZ KE5W***# 600001―

• JMZ KEEW***# 600001―

• JMZ KF6W***# 600001―810000

• JMZ KFGW***# 600001―810000

― Battery Condition Initial setting (i-stop setting) Procedure A [SKYACTIV-D 2.2] (See Battery Condition Initial setting (i-stop setting) Procedure A [SKYACTIV-D 2.2].)

• JM0 KF4W***# 100001―300000

• JM6 KF2W***# 100001―300000

• JM6 KF4W***# 100001―300000

• JM7 KF2W***# 100001―300000

• JM7 KF4W***# 100001―300000

• JMZ KF6W***# 750001―810000

• JMZ KFGW***# 750001―810000

― Battery Condition Initial Setting (i-stop setting) Procedure B [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), SKYACTIV-G 2.5T] (See Battery Condition Initial Setting (i-stop setting) Procedure B [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), SKYACTIV-G 2.5T].)

• JM0 KF2W***# 300001―

• JM0 KF4W***# 300001―

• JM6 KF2W***# 300001―

• JM6 KF4W***# 300001―

• JM7 KF2W***# 300001―

• JM7 KF4W***# 300001―

• JM7 KFAW***# 600001―

• JMZ KE5W***# 810001―

• JMZ KF6W***# 810001―

• JMZ KFGW***# 810001―

• JMZ KF6W7**# 100001―

• JMZ KFGW7**# 100001―

• JMZ KE5W7**# 100001―

• JMZ KEEW7**# 100001―

• JMZ KEEWL**# 100001―

• JMZ KF6WE**# 100001―

• JMZ KFGWE**# 100001―

• JMZ KF6WM**# 100001―

• JMZ KFGWMA*# 100001―

• JMZ KFGWMAZ# 600001―

• JMZ KF6W7AZ# 600001―

― Battery Condition Initial setting (i-stop setting) Procedure B [SKYACTIV-D 2.2] (See Battery Condition Initial setting (i-stop setting) Procedure B [SKYACTIV-D 2.2].)

• JM0 KF4W***# 300001―

• JM6 KF2W***# 300001―

• JM6 KF4W***# 300001―

• JM7 KF2W***# 300001―

• JM7 KF4W***# 300001―

• JM7 KFAW***# 300001―

• JMZ KEEW***# 810001―

• JMZ KF6W7A*# 810001―

• JMZ KF6W7AZ# 300001―

• JMZ KFGW76*# 810001―

• JMZ KFGWMAZ# 300001―

• JMZ KF6W1**# 100001―

• JMZ KFGW1**# 100001―

• JMZ KFGW2**# 100001―

Battery Condition Initial Setting (i-stop setting) Procedure A [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.5), SKYACTIV-G 2.5T]

Caution

• If the engine is started with the bonnet open, the i-stop function will not operate until the engine is restarted with the bonnet closed (not system malfunction). If the engine is started with the bonnet open, close the bonnet and restart the engine after the ignition is switched off once.

• If a vehicle with an i-stop non-operation condition is brought in, the malfunction will not be resolved by simply performing the battery condition initial setting (i-stop setting). Verify the PID “BATT_SOC” value and if the value is less than 75%, recharge the battery. (See BATTERY RECHARGING.)

• If the “BATT_SOC” value has not been verified before disconnecting the negative battery terminal, perform battery condition initial setting (i-stop setting) after performing the battery inspection.

• The “BATT_SOC” value is displayed “0%” because the battery charge condition is not stabilized after connecting the negative battery terminal (it is necessary to leave battery undisturbed for approx. 6 to 48 h to stabilize battery charge condition).

• If the negative battery terminal is disconnected, specific information stored in the PCM will be erased. Therefore, perform the following procedure after reconnecting.

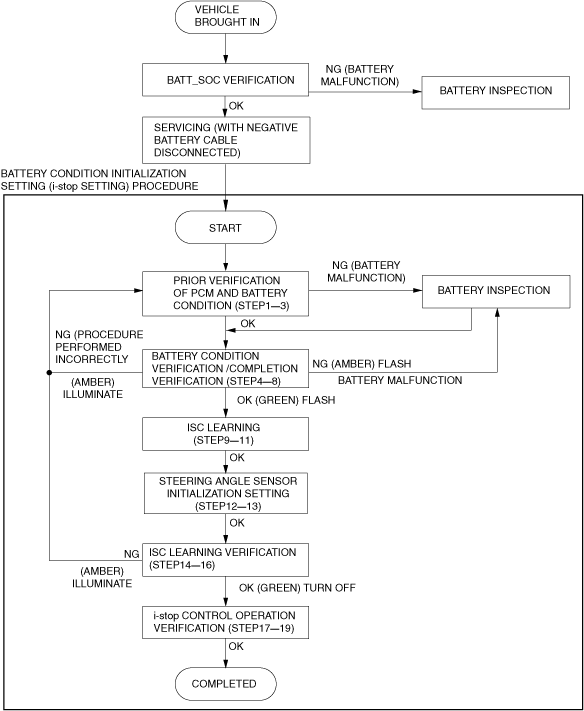

Battery Condition Initial setting (i-stop setting) flow

ac5wzw00005117

Purpose

Step

Procedure

Caution/Note

Prior verification of PCM and battery condition

1

Verify the value (BATT_SOC) measured before disconnecting the negative battery terminal.

When BATT_SOC value is 75% or more

•  Go to the next step.

When BATT_SOC value is not verified or the value is less than 75%.

•  Perform battery inspection. (See BATTERY INSPECTION.)

—

2

Verify that 5 min or more have elapsed since the negative battery terminal was disconnected.

Caution

•  It is necessary to leave the battery undisturbed for 5 min or more because the voltage is not stabilized, depending on the battery usage condition, and the PCM cannot determine the “BATT_SOC” value correctly.

3

Disconnect the current sensor connector. If the current sensor connector has already been disconnected, go to the next step.

—

Battery condition verification /completion verification

4

Connect the negative battery terminal and wait for 10 s or more.

Caution

•  negative battery terminal tightening torque: 4.0—6.0 N·m {41—61 kgf·cm, 36—53 in·lbf}

Note

•  Connect the negative battery terminal before connecting the current sensor connector. If the current sensor connector is connected first, the PCM may mistakenly recognize a signal from the current sensor and learn the battery condition incorrectly.

5

Connect the current sensor connector.

—

6

Switch the ignition ON (engine off) and wait for 15 s or more (within 1 min.).

—

7

VERIFY i-stop INDICATOR LIGHT (GREEN) AND i-stop WARNING LIGHT (AMBER) FLASHING CONDITION

•  Press the i-stop OFF switch for 10 s and verify the flashing condition of the i-stop indicator light (green) and i-stop warning light (amber).

When i-stop indicator light (green) flashes

―  Go to the next step.

When i-stop warning light (amber) flashes

―  Perform the battery inspection. (See BATTERY INSPECTION.)

When i-stop warning light (amber) illuminates

―  Procedure is performed incorrectly. Switch the ignition off and repeat the procedure from Step 1 (Prior verification of PCM and battery condition).

Note

•  When the i-stop OFF switch is pressed, the illumination condition of the i-stop warning light (amber) changes to flashing of either the i-stop indicator light (green) or the i-stop warning light (amber).

8

Switch the ignition off.

—

ISC learning

9

Close the bonnet.

Note

•  If the engine is not warmed up completely the ISC learning will not finish.

―  Warm-up is not completed even if the low engine coolant temperature indicator light (blue) turns off. As a guide, apply pressure to the radiator hose and if the radiator has warmed up, engine warming is complete.

10

Start the engine.

11

Warm up the engine completely with no electrical load.

Steering angle sensor initialization setting

12

Turn the steering wheel lock-to-lock.

Note

•  Perform steering angle sensor initialization setting because the initial value stored in the EPS control module is reset.

13

Switch the ignition off.

ISC learning verification

14

Perform the following procedure within 25 s.

1.  Switch the ignition ON (engine off) and within 5 s, long-press the i-stop OFF switch for 3 s or more. (The i-stop warning light (amber) illuminates.)

2.  Start the engine.

3.  Long-press the i-stop OFF switch one time.

4.  Verify that the i-stop warning light (amber) stop illuminating and the i-stop indicator light (green) starts flashing.

―  If the amber light continues to illuminate, the procedure was performed incorrectly, therefore repeat the procedure from Step 1. (Prior verification of PCM and battery condition)

Note

•  Although the i-stop indicator light (green) may flash a few times right after the engine is started, then the i-stop warning light (amber) starts illuminating.

15

Maintain the idle status (no electrical load) until the i-stop indicator light (green) turns off.

—

16

After the i-stop indicator light (green) turns off, switch the ignition off.

—

i-stop control operation verification

17

Start the engine and verify that the i-stop indicator light (green) is turned off.

—

18

Verify the i-stop control operation using the following procedure.

EC/Russia specs.

1.  Vehicle is traveling at a speed of 4 km/h or more.

2.  Stop the vehicle and verify that the engine stops via the i-stop control and then restarts.

Except EC/Russia specs.

1.  While the vehicle is traveling at a speed of 4 km/h or more, verify that the i-stop indicator light (green) illuminates.

2.  Stop the vehicle and verify that the engine stops via the i-stop control and then restarts.

—

19

Switch the ignition off.

—

Purpose	Step	Procedure	Caution/Note
Prior verification of PCM and battery condition	1	Verify the value (BATT_SOC) measured before disconnecting the negative battery terminal. When BATT_SOC value is 75% or more • Go to the next step. When BATT_SOC value is not verified or the value is less than 75%. • Perform battery inspection. (See BATTERY INSPECTION.)	—
2	Verify that 5 min or more have elapsed since the negative battery terminal was disconnected.	Caution • It is necessary to leave the battery undisturbed for 5 min or more because the voltage is not stabilized, depending on the battery usage condition, and the PCM cannot determine the “BATT_SOC” value correctly.
3	Disconnect the current sensor connector. If the current sensor connector has already been disconnected, go to the next step.	—
Battery condition verification /completion verification	4	Connect the negative battery terminal and wait for 10 s or more.	Caution • negative battery terminal tightening torque: 4.0—6.0 N·m {41—61 kgf·cm, 36—53 in·lbf} Note • Connect the negative battery terminal before connecting the current sensor connector. If the current sensor connector is connected first, the PCM may mistakenly recognize a signal from the current sensor and learn the battery condition incorrectly.
5	Connect the current sensor connector.	—
6	Switch the ignition ON (engine off) and wait for 15 s or more (within 1 min.).	—
7	VERIFY i-stop INDICATOR LIGHT (GREEN) AND i-stop WARNING LIGHT (AMBER) FLASHING CONDITION • Press the i-stop OFF switch for 10 s and verify the flashing condition of the i-stop indicator light (green) and i-stop warning light (amber). When i-stop indicator light (green) flashes ― Go to the next step. When i-stop warning light (amber) flashes ― Perform the battery inspection. (See BATTERY INSPECTION.) When i-stop warning light (amber) illuminates ― Procedure is performed incorrectly. Switch the ignition off and repeat the procedure from Step 1 (Prior verification of PCM and battery condition).	Note • When the i-stop OFF switch is pressed, the illumination condition of the i-stop warning light (amber) changes to flashing of either the i-stop indicator light (green) or the i-stop warning light (amber).
8	Switch the ignition off.	—
ISC learning	9	Close the bonnet.	Note • If the engine is not warmed up completely the ISC learning will not finish. ― Warm-up is not completed even if the low engine coolant temperature indicator light (blue) turns off. As a guide, apply pressure to the radiator hose and if the radiator has warmed up, engine warming is complete.
10	Start the engine.
11	Warm up the engine completely with no electrical load.
Steering angle sensor initialization setting	12	Turn the steering wheel lock-to-lock.	Note • Perform steering angle sensor initialization setting because the initial value stored in the EPS control module is reset.
13	Switch the ignition off.
ISC learning verification	14	Perform the following procedure within 25 s. 1. Switch the ignition ON (engine off) and within 5 s, long-press the i-stop OFF switch for 3 s or more. (The i-stop warning light (amber) illuminates.) 2. Start the engine. 3. Long-press the i-stop OFF switch one time. 4. Verify that the i-stop warning light (amber) stop illuminating and the i-stop indicator light (green) starts flashing. ― If the amber light continues to illuminate, the procedure was performed incorrectly, therefore repeat the procedure from Step 1. (Prior verification of PCM and battery condition)	Note • Although the i-stop indicator light (green) may flash a few times right after the engine is started, then the i-stop warning light (amber) starts illuminating.
15	Maintain the idle status (no electrical load) until the i-stop indicator light (green) turns off.	—
16	After the i-stop indicator light (green) turns off, switch the ignition off.	—
i-stop control operation verification	17	Start the engine and verify that the i-stop indicator light (green) is turned off.	—
18	Verify the i-stop control operation using the following procedure. EC/Russia specs. 1. Vehicle is traveling at a speed of 4 km/h or more. 2. Stop the vehicle and verify that the engine stops via the i-stop control and then restarts. Except EC/Russia specs. 1. While the vehicle is traveling at a speed of 4 km/h or more, verify that the i-stop indicator light (green) illuminates. 2. Stop the vehicle and verify that the engine stops via the i-stop control and then restarts.	—
19	Switch the ignition off.	—

Battery Condition Initial setting (i-stop setting) Procedure A [SKYACTIV-D 2.2]

Caution

• If the negative battery terminal is disconnected, specific information stored in the PCM will be erased. Therefore, perform the following procedure after reconnecting.

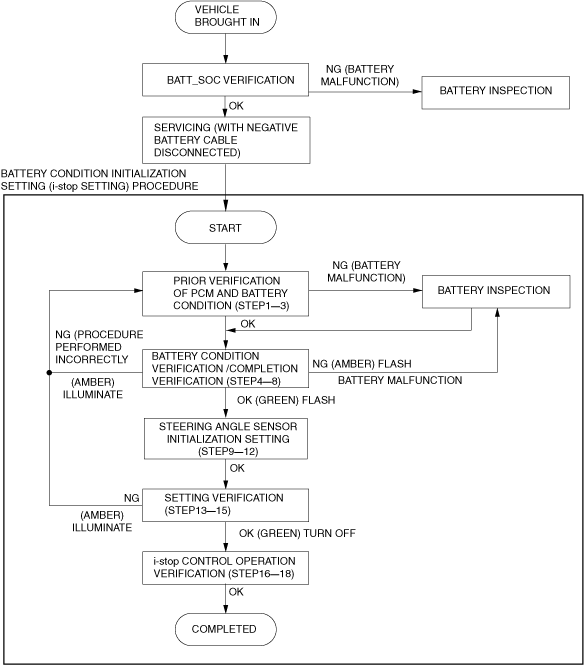

Battery Condition Initial setting (i-stop setting) flow

ac5wzw00005182

Purpose

Step

Procedure

Caution/Note

Prior verification of PCM and battery condition

1

Verify the value (BATT_SOC) measured before disconnecting the negative battery terminal.

When BATT_SOC value is 75% or more

•  Go to the next step.

When BATT_SOC value is not verified or the value is less than 75%.

•  Perform battery inspection. (See BATTERY INSPECTION.)

—

2

Verify that 5 min or more have elapsed since the negative battery terminal was disconnected.

Caution

•  It is necessary to leave the battery undisturbed for 5 min or more because the voltage is not stabilized, depending on the battery usage condition, and the PCM cannot determine the “BATT_SOC” value correctly.

3

Disconnect the current sensor connector. If the current sensor connector has already been disconnected, go to the next step.

—

Battery condition verification /completion verification

4

Connect the negative battery terminal and wait for 10 s or more.

Caution

•  negative battery terminal tightening torque: 4.0—6.0 N·m {41—61 kgf·cm, 36—53 in·lbf}

Note

•  Connect the negative battery terminal before connecting the current sensor connector. If the current sensor connector is connected first, the PCM may mistakenly recognize a signal from the current sensor and learn the battery condition incorrectly.

5

Connect the current sensor connector.

—

6

Switch the ignition ON (engine off) and wait for 15 s or more (within 1 min.).

—

7

VERIFY i-stop INDICATOR LIGHT (GREEN) AND i-stop WARNING LIGHT (AMBER) FLASHING CONDITION

•  Press the i-stop OFF switch for 10 s and verify the flashing condition of the i-stop indicator light (green) and i-stop warning light (amber).

When i-stop indicator light (green) flashes

―  Go to the next step.

When i-stop warning light (amber) flashes

―  Perform the battery inspection. (See BATTERY INSPECTION.)

When i-stop warning light (amber) illuminates

―  Procedure is performed incorrectly. Switch the ignition off and repeat the procedure from Step 1 (Prior verification of PCM and battery condition).

Note

•  When the i-stop OFF switch is pressed, the illumination condition of the i-stop warning light (amber) changes to flashing of either the i-stop indicator light (green) or the i-stop warning light (amber).

8

Switch the ignition off.

—

Steering angle sensor initialization setting

9

Close the bonnet.

—

10

Start the engine.

Note

•  Perform steering angle sensor initialization setting because the initial value stored in the EPS control module is reset.

11

Turn the steering wheel lock-to-lock.

12

Switch the ignition off.

Setting verification

13

Perform the following procedure within 25 s.

1.  Switch the ignition ON (engine off) and within 5 s, long-press the i-stop OFF switch for 3 s or more. (The i-stop warning light (amber) illuminates.)

2.  Start the engine.

3.  Long-press the i-stop OFF switch one time.

4.  Verify that the i-stop warning light (amber) stop illuminating and the i-stop indicator light (green) starts flashing.

―  If the amber light continues to illuminate, the procedure was performed incorrectly, therefore repeat the procedure from Step 1. (Prior verification of PCM and battery condition)

Note

•  Although the i-stop indicator light (green) may flash a few times right after the engine is started, then the i-stop warning light (amber) starts illuminating.

14

Maintain the idle status (no electrical load) until the i-stop indicator light (green) turns off.

—

15

After the i-stop indicator light (green) turns off, switch the ignition off.

—

i-stop control operation verification

16

Start the engine and verify that the i-stop indicator light (green) is turned off.

—

17

Verify the i-stop control operation using the following procedure.

EC/Russia specs.

1.  Vehicle is traveling at a speed of 4 km/h or more.

2.  Stop the vehicle and verify that the engine stops via the i-stop control and then restarts.

Except EC/Russia specs.

1.  While the vehicle is traveling at a speed of 4 km/h or more, verify that the i-stop indicator light (green) illuminates.

2.  Stop the vehicle and verify that the engine stops via the i-stop control and then restarts.

—

18

Switch the ignition off.

—

Purpose	Step	Procedure	Caution/Note
Prior verification of PCM and battery condition	1	Verify the value (BATT_SOC) measured before disconnecting the negative battery terminal. When BATT_SOC value is 75% or more • Go to the next step. When BATT_SOC value is not verified or the value is less than 75%. • Perform battery inspection. (See BATTERY INSPECTION.)	—
2	Verify that 5 min or more have elapsed since the negative battery terminal was disconnected.	Caution • It is necessary to leave the battery undisturbed for 5 min or more because the voltage is not stabilized, depending on the battery usage condition, and the PCM cannot determine the “BATT_SOC” value correctly.
3	Disconnect the current sensor connector. If the current sensor connector has already been disconnected, go to the next step.	—
Battery condition verification /completion verification	4	Connect the negative battery terminal and wait for 10 s or more.	Caution • negative battery terminal tightening torque: 4.0—6.0 N·m {41—61 kgf·cm, 36—53 in·lbf} Note • Connect the negative battery terminal before connecting the current sensor connector. If the current sensor connector is connected first, the PCM may mistakenly recognize a signal from the current sensor and learn the battery condition incorrectly.
5	Connect the current sensor connector.	—
6	Switch the ignition ON (engine off) and wait for 15 s or more (within 1 min.).	—
7	VERIFY i-stop INDICATOR LIGHT (GREEN) AND i-stop WARNING LIGHT (AMBER) FLASHING CONDITION • Press the i-stop OFF switch for 10 s and verify the flashing condition of the i-stop indicator light (green) and i-stop warning light (amber). When i-stop indicator light (green) flashes ― Go to the next step. When i-stop warning light (amber) flashes ― Perform the battery inspection. (See BATTERY INSPECTION.) When i-stop warning light (amber) illuminates ― Procedure is performed incorrectly. Switch the ignition off and repeat the procedure from Step 1 (Prior verification of PCM and battery condition).	Note • When the i-stop OFF switch is pressed, the illumination condition of the i-stop warning light (amber) changes to flashing of either the i-stop indicator light (green) or the i-stop warning light (amber).
8	Switch the ignition off.	—
Steering angle sensor initialization setting	9	Close the bonnet.	—
10	Start the engine.	Note • Perform steering angle sensor initialization setting because the initial value stored in the EPS control module is reset.
11	Turn the steering wheel lock-to-lock.
12	Switch the ignition off.
Setting verification	13	Perform the following procedure within 25 s. 1. Switch the ignition ON (engine off) and within 5 s, long-press the i-stop OFF switch for 3 s or more. (The i-stop warning light (amber) illuminates.) 2. Start the engine. 3. Long-press the i-stop OFF switch one time. 4. Verify that the i-stop warning light (amber) stop illuminating and the i-stop indicator light (green) starts flashing. ― If the amber light continues to illuminate, the procedure was performed incorrectly, therefore repeat the procedure from Step 1. (Prior verification of PCM and battery condition)	Note • Although the i-stop indicator light (green) may flash a few times right after the engine is started, then the i-stop warning light (amber) starts illuminating.
14	Maintain the idle status (no electrical load) until the i-stop indicator light (green) turns off.	—
15	After the i-stop indicator light (green) turns off, switch the ignition off.	—
i-stop control operation verification	16	Start the engine and verify that the i-stop indicator light (green) is turned off.	—
17	Verify the i-stop control operation using the following procedure. EC/Russia specs. 1. Vehicle is traveling at a speed of 4 km/h or more. 2. Stop the vehicle and verify that the engine stops via the i-stop control and then restarts. Except EC/Russia specs. 1. While the vehicle is traveling at a speed of 4 km/h or more, verify that the i-stop indicator light (green) illuminates. 2. Stop the vehicle and verify that the engine stops via the i-stop control and then restarts.	—
18	Switch the ignition off.	—

Battery Condition Initial Setting (i-stop setting) Procedure B [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5), SKYACTIV-G 2.5T]

Caution

• If the negative battery terminal is disconnected, specific information stored in the PCM will be erased. Therefore, perform the following procedure after reconnecting.

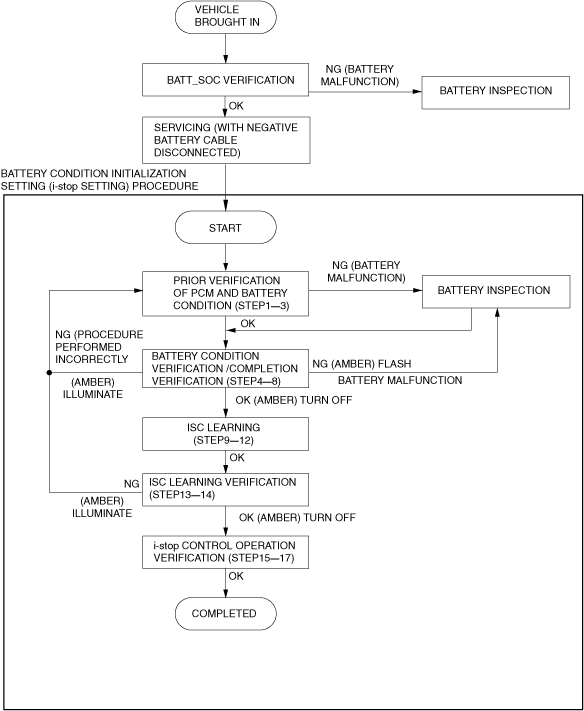

Battery Condition Initial setting (i-stop setting) flow

ac5wzw00013773

Purpose

Step

Procedure

Caution/Note

Prior verification of PCM and battery condition

1

Verify the value (BATT_SOC) measured before disconnecting the negative battery terminal.

When BATT_SOC value is 75% or more

•  Go to the next step.

When BATT_SOC value is not verified or the value is less than 75%.

•  Perform battery inspection. (See BATTERY INSPECTION.)

—

2

Verify that 5 min or more have elapsed since the negative battery terminal was disconnected.

Caution

•  It is necessary to leave the battery undisturbed for 5 min or more because the voltage is not stabilized, depending on the battery usage condition, and the PCM cannot determine the “BATT_SOC” value correctly.

3

Disconnect the current sensor connector. If the current sensor connector has already been disconnected, go to the next step.

—

Battery condition verification /completion verification

4

Connect the negative battery terminal and wait for 10 s or more.

Caution

•  negative battery terminal tightening torque: 4.0—6.0 N·m {41—61 kgf·cm, 36—53 in·lbf}

Note

•  Connect the negative battery terminal before connecting the current sensor connector. If the current sensor connector is connected first, the PCM may mistakenly recognize a signal from the current sensor and learn the battery condition incorrectly.

5

Connect the current sensor connector.

—

6

Switch the ignition ON (engine off) and wait for 15 s or more (within 1 min.).

—

7

VERIFY i-stop WARNING LIGHT (AMBER) ILLUMINATION CONDITION

•  Press the i-stop OFF switch for 10 s and verify the illumination condition of the i-stop warning light (amber).

When i-stop warning light (amber) turns off

―  Go to the next step.

When i-stop warning light (amber) flashes

―  Perform the battery inspection. (See BATTERY INSPECTION.)

When i-stop warning light (amber) illuminates

―  Procedure is performed incorrectly. Switch the ignition off and repeat the procedure from Step 1 (Prior verification of PCM and battery condition).

Note

•  When the i-stop OFF switch is pressed, the i-stop warning light (amber) stop illuminating.

8

Switch the ignition off.

—

ISC learning

9

Close the bonnet.

Note

•  If the engine is not warmed up completely the ISC learning will not finish.

―  Warm-up is not completed even if the low engine coolant temperature indicator light (blue) turns off. As a guide, apply pressure to the radiator hose and if the radiator has warmed up, engine warming is complete.

10

Start the engine.

11

Warm up the engine completely with no electrical load.

12

Switch the ignition off.

ISC learning verification

13

Perform the following procedure within 25 s.

1.  Switch the ignition ON (engine off) and within 5 s, long-press the i-stop OFF switch for 3 s or more. (The i-stop warning light (amber) illuminates.)

2.  Start the engine.

3.  Long-press the i-stop OFF switch one time.

4.  Verify that the i-stop warning light (amber) stop illuminating.

―  If the amber light continues to illuminate, the procedure was performed incorrectly, therefore repeat the procedure from Step 1. (Prior verification of PCM and battery condition)

—

14

Switch the ignition off.

—

i-stop control operation verification

15

Start the engine.

—

16

Verify the i-stop control operation using the following procedure.

1.  Vehicle is traveling at a speed of 4 km/h or more.

2.  Stop the vehicle and verify that the engine stops via the i-stop control and then restarts.

—

17

Switch the ignition off.

—

Purpose	Step	Procedure	Caution/Note
Prior verification of PCM and battery condition	1	Verify the value (BATT_SOC) measured before disconnecting the negative battery terminal. When BATT_SOC value is 75% or more • Go to the next step. When BATT_SOC value is not verified or the value is less than 75%. • Perform battery inspection. (See BATTERY INSPECTION.)	—
2	Verify that 5 min or more have elapsed since the negative battery terminal was disconnected.	Caution • It is necessary to leave the battery undisturbed for 5 min or more because the voltage is not stabilized, depending on the battery usage condition, and the PCM cannot determine the “BATT_SOC” value correctly.
3	Disconnect the current sensor connector. If the current sensor connector has already been disconnected, go to the next step.	—
Battery condition verification /completion verification	4	Connect the negative battery terminal and wait for 10 s or more.	Caution • negative battery terminal tightening torque: 4.0—6.0 N·m {41—61 kgf·cm, 36—53 in·lbf} Note • Connect the negative battery terminal before connecting the current sensor connector. If the current sensor connector is connected first, the PCM may mistakenly recognize a signal from the current sensor and learn the battery condition incorrectly.
5	Connect the current sensor connector.	—
6	Switch the ignition ON (engine off) and wait for 15 s or more (within 1 min.).	—
7	VERIFY i-stop WARNING LIGHT (AMBER) ILLUMINATION CONDITION • Press the i-stop OFF switch for 10 s and verify the illumination condition of the i-stop warning light (amber). When i-stop warning light (amber) turns off ― Go to the next step. When i-stop warning light (amber) flashes ― Perform the battery inspection. (See BATTERY INSPECTION.) When i-stop warning light (amber) illuminates ― Procedure is performed incorrectly. Switch the ignition off and repeat the procedure from Step 1 (Prior verification of PCM and battery condition).	Note • When the i-stop OFF switch is pressed, the i-stop warning light (amber) stop illuminating.
8	Switch the ignition off.	—
ISC learning	9	Close the bonnet.	Note • If the engine is not warmed up completely the ISC learning will not finish. ― Warm-up is not completed even if the low engine coolant temperature indicator light (blue) turns off. As a guide, apply pressure to the radiator hose and if the radiator has warmed up, engine warming is complete.
10	Start the engine.
11	Warm up the engine completely with no electrical load.
12	Switch the ignition off.
ISC learning verification	13	Perform the following procedure within 25 s. 1. Switch the ignition ON (engine off) and within 5 s, long-press the i-stop OFF switch for 3 s or more. (The i-stop warning light (amber) illuminates.) 2. Start the engine. 3. Long-press the i-stop OFF switch one time. 4. Verify that the i-stop warning light (amber) stop illuminating. ― If the amber light continues to illuminate, the procedure was performed incorrectly, therefore repeat the procedure from Step 1. (Prior verification of PCM and battery condition)	—
14	Switch the ignition off.	—
i-stop control operation verification	15	Start the engine.	—
16	Verify the i-stop control operation using the following procedure. 1. Vehicle is traveling at a speed of 4 km/h or more. 2. Stop the vehicle and verify that the engine stops via the i-stop control and then restarts.	—
17	Switch the ignition off.	—

Battery Condition Initial setting (i-stop setting) Procedure B [SKYACTIV-D 2.2]

Caution

• If the negative battery terminal is disconnected, specific information stored in the PCM will be erased. Therefore, perform the following procedure after reconnecting.

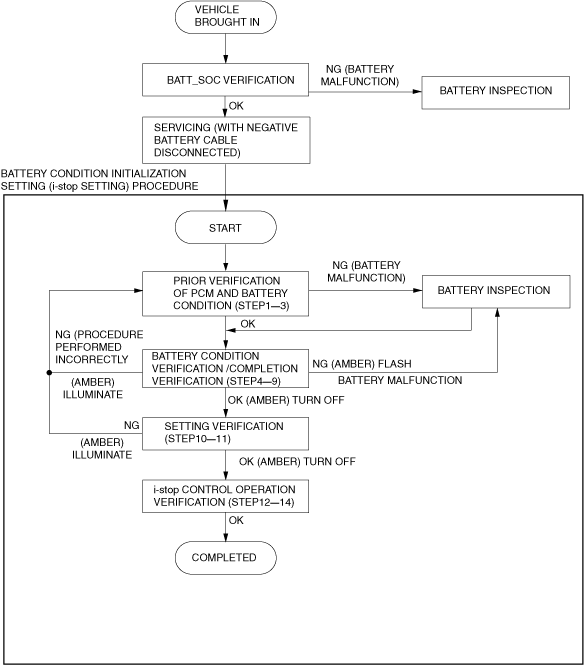

Battery Condition Initial setting (i-stop setting) flow

ac5wzw00013774
