DC-DC CONVERTER [SKYACTIV-G 2.5T]
id0117r2004500
Purpose, Function
• When the engine is restarted by the i-stop control, the battery voltage temporarily decreases to operate the starter. Pressure is increased to maintain the voltage for vehicle electrical devices at that time.

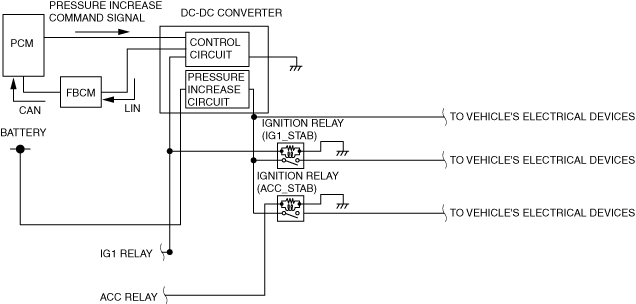

Construction
• The DC-DC converter is installed on the vehicle's left front part (lower part of front combination light).
Operation
• The battery voltage increases based on the control signal from the PCM.
Fail-safe
|
DTC
|
Fail-safe
|
|
P0A94:00
|
• Inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)
|
