STARTER DISASSEMBLY/ASSEMBLY [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0119m1104500

Vehicle Without i-stop

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

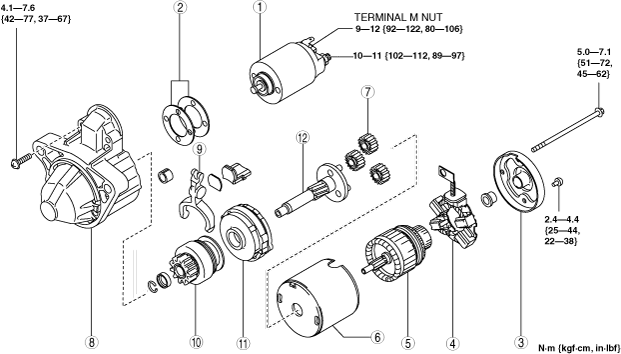

ac5uuw00003101

1	Magnetic switch
2	Adjustment washer
3	Rear housing
4	Brush and brush holder
5	Armature
6	Yoke
7	Planetary gear
8	Front cover
9	Lever
10	Drive pinion
11	Internal gear
12	Gear shaft
