STARTER INTERLOCK SWITCH [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]
id0119m2133000
Purpose, Function
• The starter interlock switch mechanism prevents vehicle surge when the engine is started, enhancing safety. The engine cannot be started unless the clutch is depressed.
Construction

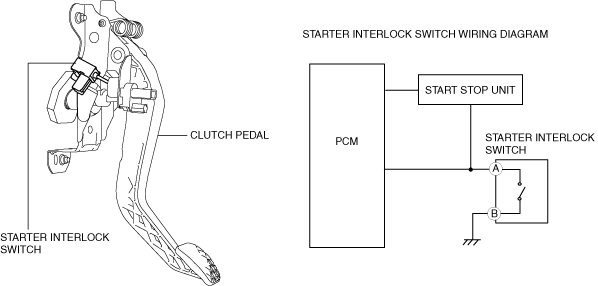

• The mechanism is provided with a starter interlock switch on the circuit under the START STOP UNIT and the PCM.
Operation

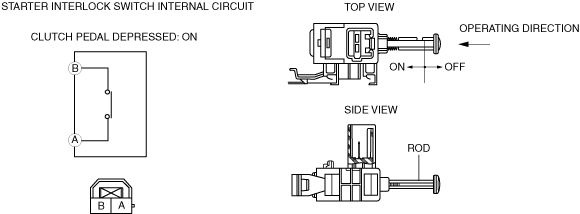

• Depressing the clutch pedal presses the starter interlock switch rod. At this time, the starter interlock switch is on, and the power circuit to the starter closes. Accordingly, the starter operates only when the clutch is depressed and the engine can be started.
Fail-safe
DTC
|
Fail-safe
|
P176E:00
|
• Flashes the i-stop warning light (amber) and inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)
|
