STARTER RELAY [SKYACTIV-G 2.5T]

id0119q6112500


Purpose, Function

•  The starter relay operates by the signal from the start stop unit and the PCM control, and it supplies battery power to the starter.

Construction

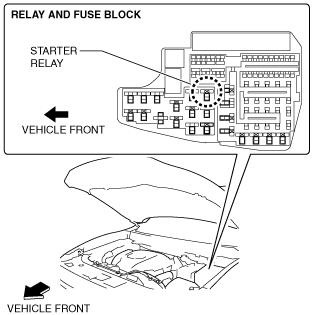

•  The starter relay is located on the relay and fuse block.
ac5wzn00005404
•  A Normally open relay has been adopted for the starter relay.

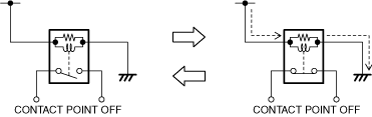

•  When electric current flows to the coil, the contact point is attracted by the generated electromagnetic power and switches on.
ardjjn00001688

Operation

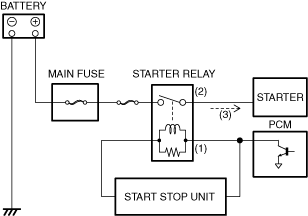

1.  The signal from the start stop unit is sent (1) to the starter relay coil.

2.  When a ground is established in the PCM circuit by the PCM control, electric current flows to the coil, the contact point is drawn by the generated electromagnetic force, and it switches on (2).

3.  When the contact point switches on, battery power is supplied (3) to the starter.

amxzzn00001255


Fail-safe

DTC

Fail-safe
P0615:00
•  Inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)
P0A0F:00
•  Flashes the i-stop warning light (amber) and inhibits engine-stop by operating the i-stop function.
