SELECT MODE INDICATION [SKYACTIV-G 2.5T]

id0121a5000500

Purpose

• The select mode indication notifies the driver that the sport mode has been selected using the drive selection switch, or that switching of the drive selection is not possible.

Function

• The instrument cluster displays the select mode indication based on the select mode indication on request signal from the PCM.

• The instrument cluster flashes the select mode indication based on the select mode indication flash request signal from the PCM.

Construction

• The select mode indication is built into the instrument cluster.

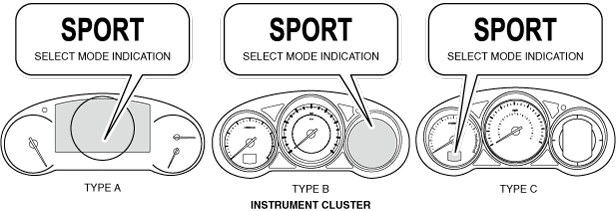

am6xun00004850

Operation

1. The instrument cluster receives (1) a select mode indication on or flash request signal from the PCM via CAN communication.

2. The instrument cluster displays or flashes (2) the select mode indication on the LCD based on the select mode indication on or flash request signal.

ac5uun00003918

Fail-safe

• Not applicable
