KNOCK SENSOR (KS) [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]


id0140m1004900


Purpose/Function

•  Detects abnormal combustion in the cylinder as basic information for mainly determining the ignition timing.
•  Detects abnormal combustion in the combustion chamber and sends it to the PCM as a knocking signal.

Construction

•  Installed on the cylinder block.

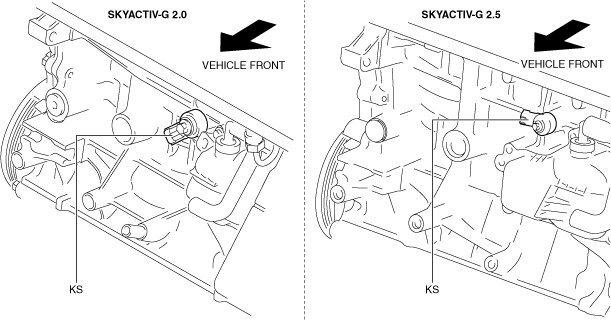

ac5wzn00002380
•  A piezoelectric element has been adopted as the detecting element for detecting abnormal combustion.

Operation

•  Sends the signal, which fluctuates according to abnormal combustion, to the PCM.
ac5wzn00002381

KS characteristic

ac5wzn00002382

Fail-safe

DTC No.

Fail-safe function

P0327:00
•  Sets the knocking spark retard correction value of the ignition control to the fixed value.
P0328:00
•  Sets the knocking spark retard correction value of the ignition control to the fixed value.
