NEUTRAL SWITCH [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0140m1008100

Purpose/Function

• Detects the neutral position of the shift lever.

Construction

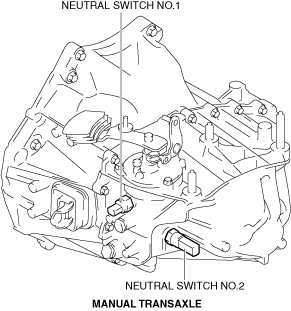

• Installed to the manual transaxle.

ac5wzn00001574

• An ON/OFF type switch has been adopted.

Operation

• Sends the neutral switch on/off signal to the PCM.

ac5wzn00002417

• The contact point is on when in neutral to output voltage and off when not in neutral.

ac5wzn00002418

ac5wzn00002419

Fail-safe

• Function not equipped.
