ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0140m1216700

With Coolant Control Valve

Replacement Part

Note

•  The engine oil temperature sensor and engine oil pressure sensor cannot be removed as a single unit. When replacing the engine oil temperature sensor or engine oil pressure sensor, replace the engine oil temperature sensor/engine oil pressure sensor.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Lift up the vehicle.

3.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4.  Disconnect the connector for the engine oil temperature sensor/engine oil pressure sensor using the following procedure: (See Engine oil temperature sensor/engine oil pressure sensor connector connection note.)

(1)  Pull out the connector lock in the direction of the arrow.

ac5wzw00006376

(2)  Press the lock down in the direction of the arrow and disconnect the connector.

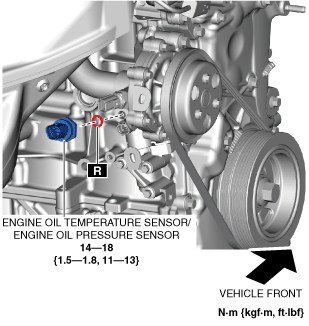

5.  Remove the engine oil temperature sensor/engine oil pressure sensor.

ac5wzw00010645

6.  Install in the reverse order of removal.

Engine oil temperature sensor/engine oil pressure sensor connector connection note

1.  Connect the connector for the engine oil temperature sensor/engine oil pressure sensor and press it in the lock direction of the arrow.

ac5wzw00005478
