ENGINE OIL PRESSURE SENSOR [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0140m1257000

With coolant control valve

Purpose/Function

•  Detects the engine oil pressure as basic information for mainly idle speed control.

•  Detects the engine oil pressure and sends it to the PCM as an engine oil pressure signal.

Construction

•  Installed on the cylinder block.

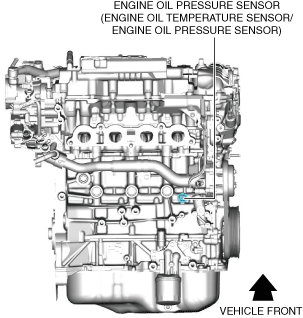

ac5wzn00004473

•  A semiconductor strain gauge has been adopted to the engine oil pressure sensor (as the detecting element) for detecting the engine oil pressure.

•  The engine oil pressure sensor is integrated with the engine oil temperature sensor.

Operation

•  Sends the signal, which fluctuates according to the engine oil pressure, to the PCM.

ac3wzn00000802

Engine oil pressure sensor characteristic

am2zzn00003693

Fail-safe

DTC No.	Fail-safe function
P0522:00	•  Limits the engine torque or the upper limit of the engine speed.
P0523:00
P0524:00	•  Limits the engine torque or the upper limit of the engine speed. •  Inhibits the auto DPF regeneration control. •  Inhibits the compulsory DPF regeneration control. •  Inhibits the boost control. •  Inhibits the EGR control. •  Inhibits engine-stop by operating the i-stop function.
P055F:00	•  PCM restricts engine torque.
