ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0140m1801900

Special Service Tool (SST)

49 D015 001   Box wrench

Replacement Part

Without Coolant Control Valve

Warning

•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the ECT sensor.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

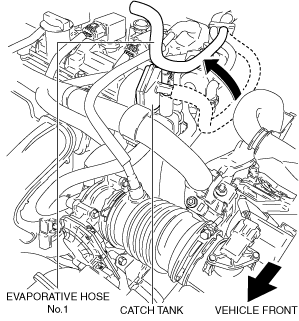

4.  Pull out the evaporative hose No.1 from the catch tank and set it aside.

ac5uuw00007026

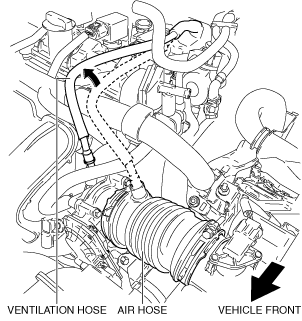

5.  Pull out the ventilation hose from the air hose and set it aside.

ac5wzw00000278

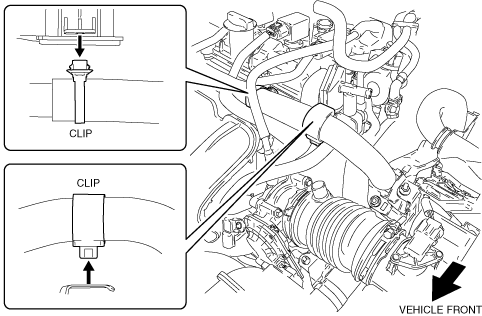

6.  Remove the clip and loosen the wiring harness.

ac5uuw00003648

7.  Disconnect the ECT sensor connector.

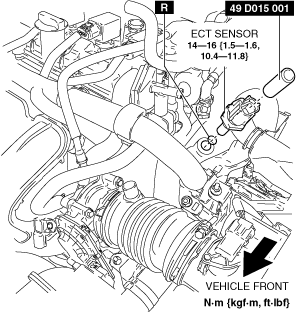

8.  Remove the ECT sensor using the SST.

ac5wzw00013885

9.  Install in the reverse order of removal.

10.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

With Coolant Control Valve

ECT sensor No.1

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3.  Lift up the vehicle.

4.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

5.  Disconnect the ECT sensor connector.

6.  Remove the ECT sensor No.1 using the SST.

ac5wzw00013886

7.  Install in the reverse order of removal.

8.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

ECT sensor No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3.  Remove the coolant control valve. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

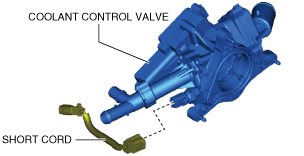

4.  Remove the short cord.

ac5wzw00012168

5.  Remove the ECT sensor No.2 using the SST.

ac5wzw00013887

6.  Install in the reverse order of removal.

7.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
