ENGINE COOLANT TEMPERATURE (ECT) SENSOR [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0140m2006200

Purpose/Function

• Detects the ECT as basic information for mainly determining the fuel injection amount.

• Detects the ECT and sends it to the PCM as an ECT signal.

Construction

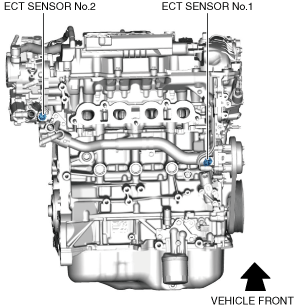

• The ECT sensor is located near the engine coolant control valve and the water pump.

ac5wzn00005411

Operation

• Sends the signal, which fluctuates according to the ECT, to the PCM.

am3uun00001656

ECT sensor characteristic

ac5wzn00002584

Fail-safe

DTC No.

Fail-safe function

P0117:00

•  Fixes water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F}

•  Operates the cooling fan (high speed rotation).

•  Inhibits the fuel cut control during shift change.

P0118:00

•  Fixes water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F}

•  Operates the cooling fan (high speed rotation).

•  Inhibits the fuel cut control during shift change.

DTC No.	Fail-safe function
P0117:00	• Fixes water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F} • Operates the cooling fan (high speed rotation). • Inhibits the fuel cut control during shift change.
P0118:00	• Fixes water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F} • Operates the cooling fan (high speed rotation). • Inhibits the fuel cut control during shift change.
