CRANKSHAFT POSITION (CKP) SENSOR [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0140m2006300

Purpose/Function

• Detects the crankshaft speed as basic information for mainly determining the fuel injection timing and ignition timing.

• Detects the crankshaft speed and sends it to the PCM as a CKP signal.

Construction

• Installed on the side of the cylinder block (right side).

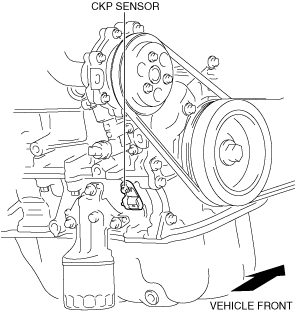

ac5wzn00002585

• An MR (Magnetic Resistance) element has been adopted as the detecting element for detecting the crankshaft speed.

Operation

• Sends the signal, which fluctuates according to the crankshaft speed, to the PCM.

ac5wzn00002586

CKP sensor characteristic

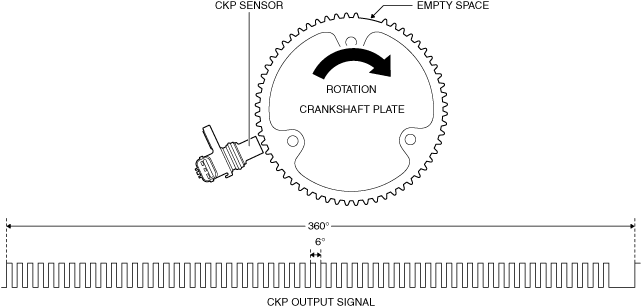

ac5wzn00005385

Fail-safe

DTC No.

Fail-safe function

P0335:00

• Stops fuel injection

• Stops ignition
