A/C RELAY [SKYACTIV-D 2.2]

id0140z7256300

Purpose/Function

• Supplies power to magnetic clutch.

• Supplies battery voltage to magnetic clutch based on the signals from the PCM.

Construction

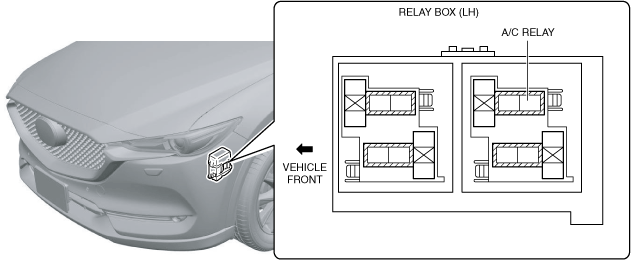

• The A/C relay is installed in the relay box (LH).

ac5wzn00005018

Operation

• The contact point is on when the battery voltage is supplied to the coil based on the signal from the PCM, and the battery voltage is supplied to the magnetic clutch.

ac5wzn00002468

Fail-safe

DTC No.

Fail-safe function

P0646:00

P0647:00

•  Stops the G-vectoring control (GVC).

•  Limits the engine transaxle total control.

•  Inhibits the A/C control.
