FUEL TEMPERATURE SENSOR [SKYACTIV-D 2.2]

id0140z7256500

Purpose/Function

Fuel injector (2pin type)

• Detects the fuel temperature in the fuel supply line as basic information for mainly determining the fuel injection amount.

• Detects the fuel temperature in the fuel supply line and sends it to the PCM as the fuel temperature signal.

Fuel injector (6pin type)

• Detects the fuel temperature in the fuel supply line as basic information for mainly determining the fuel injection amount.

• Detects the fuel temperature in the fuel supply line and inputs it to the PCM as a fuel temperature signal.

Construction

Fuel injector (2pin type)

• Fuel temperature sensor is installed in lower case.

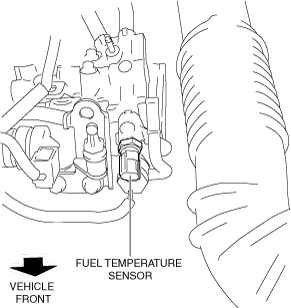

ac5wzn00001640

• A thermistor has been adopted as the detecting element for detecting the fuel temperature in the fuel supply line.

Fuel injector (6pin type)

• Built into the fuel injector.

ac8wzn00000476

Operation

Fuel injector (2pin type)

• Sends the signal, which fluctuates according to the fuel temperature in the fuel supply line, to the PCM.

ac5wzn00001641

Fuel temperature sensor characteristic

ac5wzn00001642

Fuel injector (6pin type)

• Sends the signal, which fluctuates according to the fuel temperature in the fuel supply line, to the PCM.

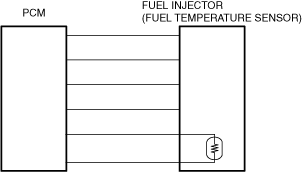

ac8wzn00000477

• The fuel temperature sensor detects the fuel temperature using the temperature characteristic of the diffusion resistance in the fuel pressure sensor.

― Performs A/D conversion of voltage at part (a) and calculates the fuel temperature signal.

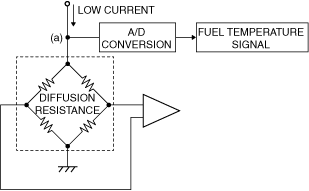

ac5wzn00005118

Fail-safe

DTC No.

Fail-safe function

P10D5:00

•  Limits engine torque.

•  Limits the maximum engine speed.

•  Inhibits the EGR control.

•  Limits the engine transaxle total control.
