REGULATING VALVE ACTUATOR POSITION SENSOR [SKYACTIV-D 2.2]

id0140z7257500

Fuel injector (6pin type)

Purpose/Function

• Detects the regulating valve open/closed condition as basic information for mainly boost control.

• Detects the regulating valve opening/closing condition and sends it to the PCM as the regulating valve opening angle signal.

Construction

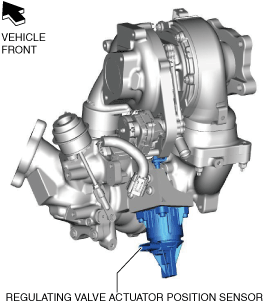

• The regulating valve actuator position sensor is installed to the turbocharger.

ac8wzn00000517

Operation

• Sends the signal, which fluctuates according to the regulating valve opening/closing, to the PCM.

ac8wzn00000518

Characteristic graph

ac5wzn00001662

Fail-safe

DTC No.

Fail-safe function

P0045:00

P0046:00

•  Limits engine torque.

•  Limits the maximum engine speed.

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the boost control.

•  Inhibits the EGR control.

•  Stops the G-vectoring control (GVC).

•  Limits the engine transaxle total control.

P2564:00

P2565:00

•  Limits engine torque.

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the boost control.

•  Inhibits the EGR control.

•  Stops the G-vectoring control (GVC).

•  Limits the engine transaxle total control.

DTC No.	Fail-safe function
P0045:00 P0046:00	• Limits engine torque. • Limits the maximum engine speed. • Inhibits the automatic diesel particulate filter regeneration control. • Inhibits the manual diesel particulate filter regeneration control. • Inhibits the boost control. • Inhibits the EGR control. • Stops the G-vectoring control (GVC). • Limits the engine transaxle total control.
P2564:00 P2565:00	• Limits engine torque. • Inhibits the automatic diesel particulate filter regeneration control. • Inhibits the manual diesel particulate filter regeneration control. • Inhibits the boost control. • Inhibits the EGR control. • Stops the G-vectoring control (GVC). • Limits the engine transaxle total control.
