WRENCH INDICATION/WRENCH INDICATOR LIGHT [SKYACTIV-D 2.2]

id0140z7320300

Purpose, Function

Construction

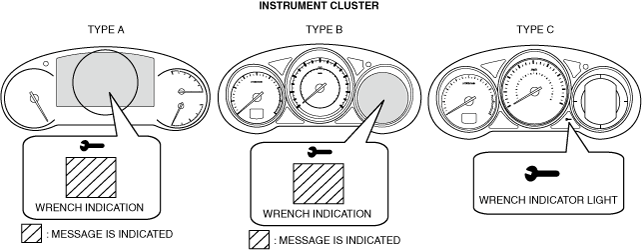

•  The wrench indicator light is built into the instrument cluster.

am6xun00004623

Operation

With multi-information display

•  The message display conditions related to the wrench indicator light are as follows:

―  Water level in sedimentor is certain level or more

―  When the preset maintenance period approaches (See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)

―  PCM determines engine oil replacement period reached. (See ENGINE OIL MAINTENANCE MONITOR [SKYACTIV-D 2.2].) (European specs.)

•  The PCM sends a message indication request to the instrument cluster via CAN communication.

Without multi-information display

•  The wrench indicator light illumination/flash conditions are as follows:

Wrench indicator light illumination conditions

―  Ignition switch ON (turns off after several second)

―  When the preset maintenance period approaches (See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)

―  PCM determines engine oil replacement period reached. (See ENGINE OIL MAINTENANCE MONITOR [SKYACTIV-D 2.2].) (European specs.)

Wrench indicator light flash conditions

―  Water level in sedimentor is certain level or more

•  The PCM sends a wrench indicator light illumination or flash request to the instrument cluster via CAN communication.

Fail-safe
