INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7806300

Replacement Part

Pakking

Quantity: 1

Location of use: IAT sensor No.2


Fuel Injector (2Pin Type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Disconnect the IAT sensor No.2 connector.

4.  Remove clip A from the bracket.

ac5wzw00004490

5.  Remove clip B from the bracket.

ac5wzw00005491

6.  Set the wiring harness aside.

ac5wzw00005492

7.  Remove clip C from the bracket.

ac5wzw00005493

8.  Remove the IAT sensor No.2.

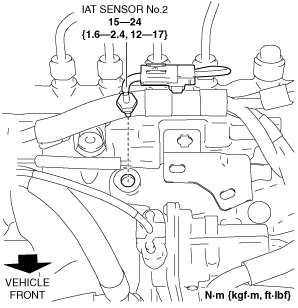

ac5wzw00008697

9.  Install in the reverse order of removal.


Fuel Injector (6Pin Type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Disconnect the IAT sensor No.2 connector.

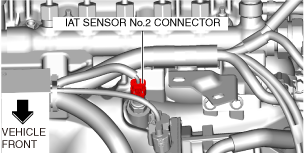

ac5wzw00012110

4.  Remove the IAT sensor No.2.

ac5wzw00012111

5.  Install in the reverse order of removal.
