INTAKE SHUTTER VALVE CONTROL [SKYACTIV-D 2.2]

id0140z7988300

Outline

―  EGR control: It is difficult to recirculate exhaust gas because of the influence of the two-stage air charging pressure, therefore, the intake shutter valve is closed during EGR control to make recirculated exhaust gas induction easier. (fuel injector (2pin type))

―  EGR control: Due to the difficulty in generating a pressure difference between the intake and exhaust during light engine-loads, recirculated exhaust gas induction is facilitated by closing the intake shutter valve and pressurizing the intake manifold. (fuel injector (6pin type))

―  DPF regeneration control: Intake air is reduced during DPF regeneration control to cause the exhaust gas temperature to increase more easily.

―  During deceleration: Intake air is reduced so that the catalyst temperature is not lowered by the incoming outside air.

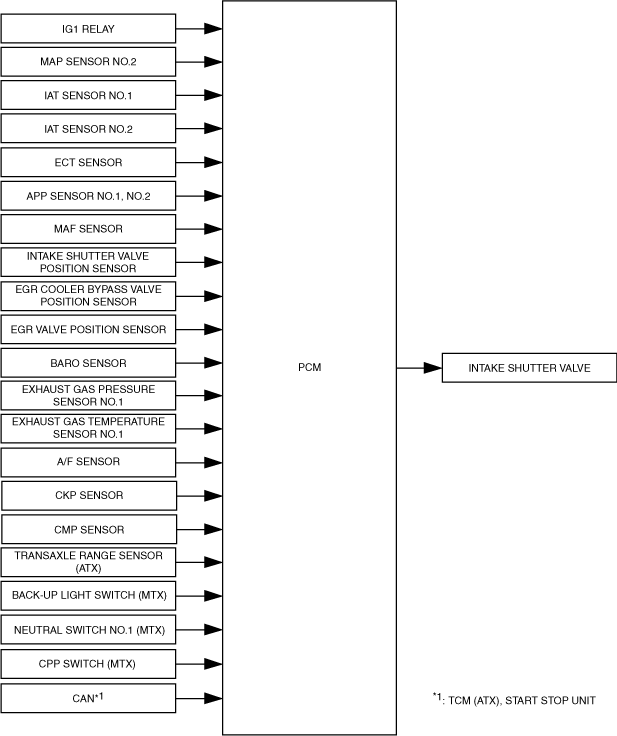

Block diagram

ac5wzn00002128

Operation

During EGR control

•  The PCM controls the intake shutter valve to the optimum opening angle based on the engine speed, fuel injection amount, and intake air amount.

During DPF regeneration control

•  The PCM controls the intake shutter valve to the optimum opening angle based on the engine speed, fuel injection amount, exhaust gas temperature, and intake air amount.
