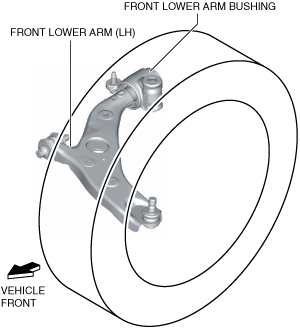

• A fluid-filled type front lower arm bushing has been adopted.
• By filling the inside of the front lower arm bushing with fluid, the damping coefficient is increased and the vibration to the steering is suppressed.
ac5uun00002741
Front Crossmember
• A strut type front suspension has been adopted.

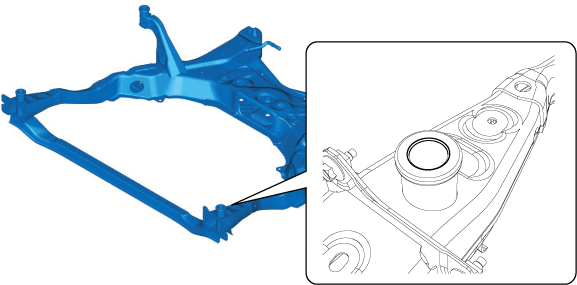

• The connection area of the front crossmember and body is a 6-point rigid mount type.
ac5jjn00003619

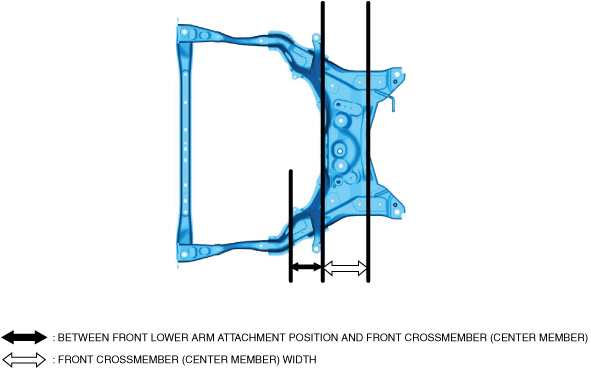

• The cross-section on the center member of the front crossmember has been expanded and the longitudinal offset of the front lower arm installation position reduced to realize an optimized framework.
ac5uun00002742

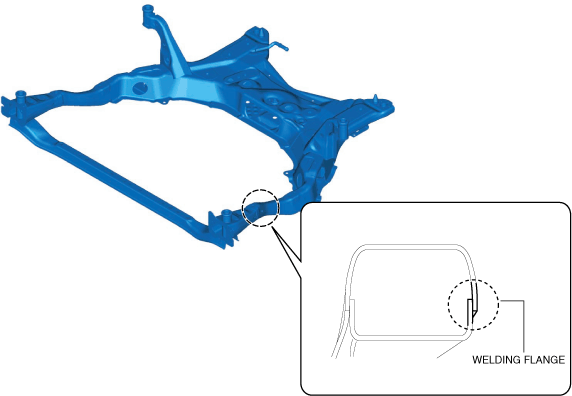

• For the front crossmember, the welded part of the flange has been eliminated (flange-less), the cross-section expanded and the connection rigidity of the welded parts improved to achieve both rigidity and light weight.
ac5uun00002743
• The caster angle and caster trail of the front suspension have been increased.
