WHEEL HUB COMPONENT REMOVAL/INSTALLATION [2WD]

id031200800401

Special Service Tool (SST)

49 T028 301   Dust boot installer

49 U034 204   Dust boot installer

49 W032 310   Support block

Replacement Part

Caution

•  Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1.  Switch the ignition ON (engine off).

2.  Release the electric parking brake.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal. (See Suspension Links Installation Note.)

8.  When the hub support, hub support bushing (front), or hub support bushing (rear) is replaced, inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)

ac5wzw00011225

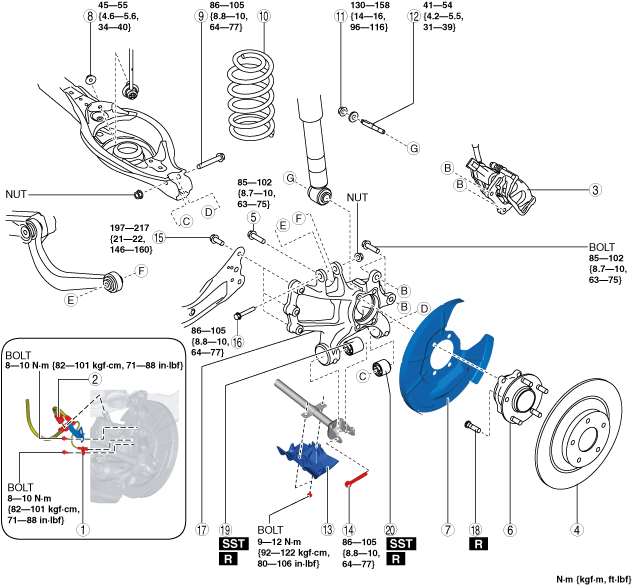

1	Rear ABS wheel-speed sensor
2	Electric parking brake motor gear unit connector
3	Brake caliper component (See Brake Caliper Component Removal Note.)
4	Disc plate
5	Bolt (wheel hub)
6	Wheel hub
7	Dust cover
8	Rear stabilizer control link lower side nut
9	Rear lower arm outer bolt (See Rear Lower Arm Outer Bolt Removal Note.)
10	Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION.)
11	Rear shock absorber lower nut
12	Stud bolt
13	Protector (With protector)
14	Rear lateral link outer bolt
15	Rear trailing link installation bolt
16	Bolt (rear upper arm outer side)
17	Hub support
18	Wheel hub bolt (See Wheel Hub Bolt Removal Note.) (See Wheel Hub Bolt Installation Note.)
19	Hub support bushing (front) (See Hub Support Bushing (Front) Removal Note.) (See Hub Support Bushing (Front) Installation Note.)
20	Hub support bushing (rear) (See Hub Support Bushing (Rear) Removal Note.) (See Hub Support Bushing (Rear) Installation Note.)

Brake Caliper Component Removal Note

1.  Remove the rear brake caliper component and suspend it out of the way using a cable.

ac9uuw00008034

Rear Lower Arm Outer Bolt Removal Note

1.  Support the rear lower arm using a jack.

ac5wzw00011876

2.  Remove the rear lower arm outer bolt.

Wheel Hub Bolt Removal Note

Note

•  Remove the wheel hub bolt only if there is any malfunction.

1.  Remove the wheel hub bolt using a press.

ac5jjw00003216

Hub Support Bushing (Front) Removal Note

1.  Mark the hub support as shown in the figure.

ac5wzw00011877

2.  Press the rear hub support bushing (front) out using the SSTs.

ac5wzw00002565

Hub Support Bushing (Rear) Removal Note

1.  Mark the hub support as shown in the figure.

ac5wzw00011878

2.  Press the rear hub support bushing (rear) out using the SSTs.

ac5wzw00002567

Suspension Links Installation Note

1.  When installing the joint sections with rubber bushings, perform the following procedures.

(1)  Temporarily tighten the bolts, stud bolt, and nuts with the vehicle lifted up.

(2)  Lower the vehicle to the ground and tighten the bolts, stud bolt, and nuts to the specified torque.

Hub Support Bushing (Rear) Installation Note

1.  Align the projection of the bushing with the hub support marking and set a new bushing to the hub support.

ac5wzw00002568

2.  Install a new hub support bushing (rear) using the SSTs.

ac5wzw00002569

Hub Support Bushing (Front) Installation Note

1.  Align the projection of the bushing with the hub support marking and set a new bushing to the hub support.

ac5wzw00002570

2.  Install a new hub support bushing (front) using the SSTs.

ac5wzw00002571

Wheel Hub Bolt Installation Note

1.  Install the new wheel hub bolt using a press.

ac5jjw00003849
