FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH 2-PISTON FLOATING CALIPER]
id0411000001w5
1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

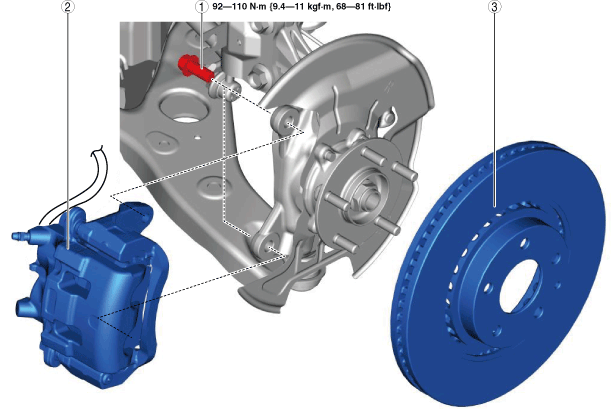

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
ac5wzw00009644
|
|
1
|
Bolt
|
|
2
|
Front brake caliper component
|
|
3
|
Disc plate
|
Front Brake Caliper Component Removal Note

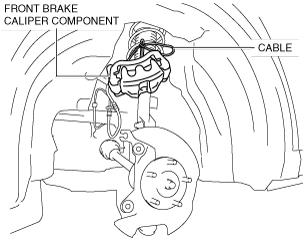

1. Remove the front brake caliper component and suspend it in a place out of the way using a cable.
ac5wzw00009645
|
Front Brake Caliper Component Installation Note
1. Push the piston in using the commercially available disc brake expand tool.
ac5wzw00009646
|
2. Install the front brake caliper component.
