FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER]

id0411000002w4

Oil and Chemical Type

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

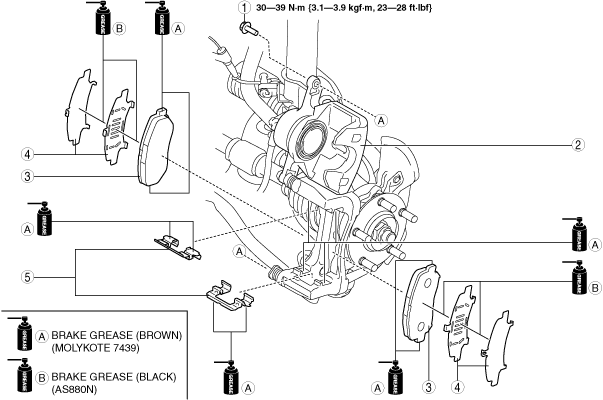

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

ac5uuw00007452

1	Bolt
2	Caliper
3	Disc pad (See Disc Pad, Bolt Installation Note.)
4	Shim
5	Guide plate (See Guide Plate Installation Note.)

Guide Plate Installation Note

Caution

•  When assembling the guide plates to the mounting support, securely assemble them on the leading side and trailing side to each position shown in the figure. If the guide plates are assembled to the incorrect positions, it could become a source of noise.

1.  Install the guide plate as shown in the figure.

ac5uuw00007453

Disc Pad, Bolt Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

ac5uuw00007454

3.  Install the disc pads to the mounting support.

4.  Return the caliper to the original position and install the bolt.
