FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [WITH 2-PISTON FLOATING CALIPER]

id0411000004w5

Caution

•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Replacement Part

Oil and Chemical Type

1.  Disassemble in the order indicated in the table.

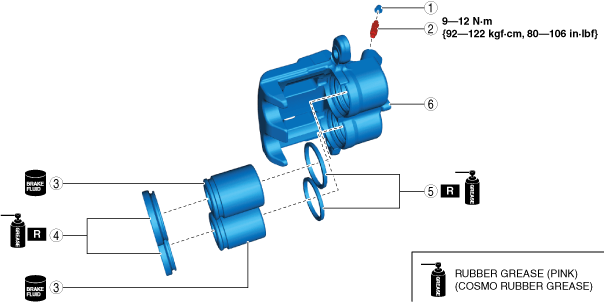

ac5wzw00009651

1	Bleeder cap
2	Bleeder screw
3	Piston (See Piston Disassembly Note.)
4	Dust seal
5	Piston seal
6	Caliper body

2.  Assemble in the reverse order of removal.

Piston Disassembly Note

Warning

•  When compressed air is blown into the caliper body, injury to a finger or other part from pinching could result from the piston springing up. When blowing in compressed air, do not place your fingers between the piston and caliper body when performing the work.

Caution

•  The piston could be damaged if blown out with great force. Blow the compressed air slowly to prevent the piston from suddenly popping out.

1.  Insert a piece of wood in the caliper as shown in the figure and blow compressed air through the hole to remove the pistons from the caliper body.

ac9uuw00008899
