FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER]

id0411000005w4

Replacement Part

Oil and Chemical Type

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

ac5uuw00007458

1	Bolt
2	Front brake caliper (See Front Brake Caliper Removal Note.)
3	Slide pin (main)
4	Slide pin (sub)
5	Dust boot
6	Disc pad component
7	Guide plate (See Guide Plate Installation Note.)
8	Bolt
9	Mounting support

Front Brake Caliper Removal Note

1.  Remove the front brake caliper and suspend it in a place out of the way using a cable.

ac5uuw00007459

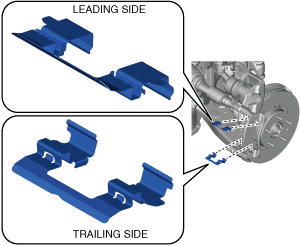

Guide Plate Installation Note

Caution

•  When assembling the guide plates to the mounting support, securely assemble them on the leading side and trailing side to each position shown in the figure. If the guide plates are assembled to the incorrect positions, it could become a source of noise.

1.  Install the guide plate as shown in the figure.

ac5uuw00007460
