VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (SKYACTIV-D 2.2)]


id0411008016w9

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

2.  Disconnect the vacuum hose from the clip.

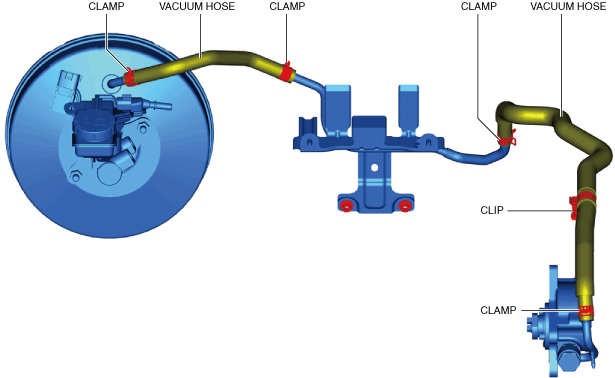

ac5wzw00009810

3.  Pinch open the clamps using pliers and disconnect the vacuum hoses.

4.  Install in the reverse order of removal. (See Vacuum Hose Installation Note.)


Vacuum Hose Installation Note

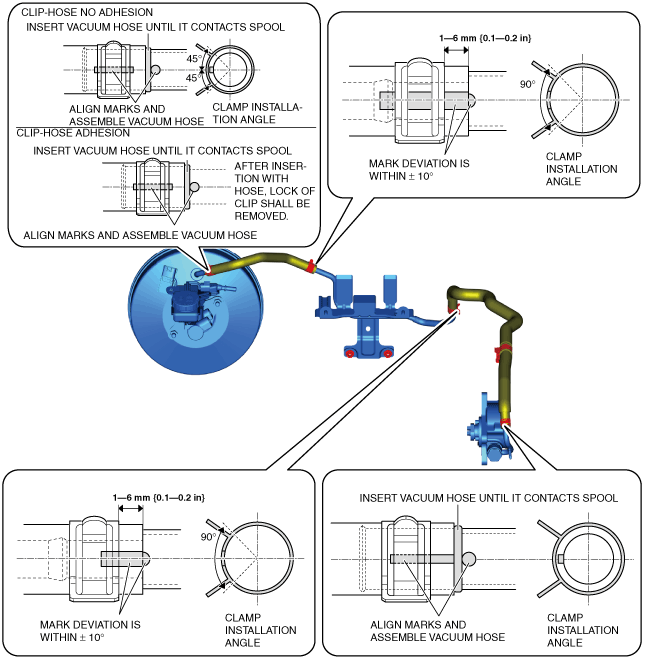

1.  Install the vacuum hoses as shown in the figure.

ac5wzw00012686
