FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041500800300

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

5. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

ac5uuw00007519

Connector Disconnection Note

1. Remove the fasteners.

ac5uuw00007520

2. Partially peel back the front mudguard and disconnect the connector.

Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note

Note

• Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure is required.

ac5uuw00007521

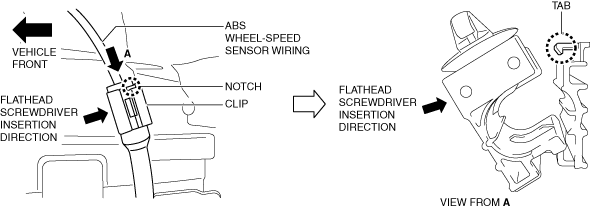

1. Insert a flathead screwdriver from the side where there is no notch as shown in the figure.

ac5wzw00012850

2. Detach the tab as shown in the figure and disconnect the ABS wheel-speed sensor wiring harness and clip.

1	Connector (See Connector Disconnection Note.)
2	Bolt
3	Front ABS wheel-speed sensor (See Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note.)
