STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION [D66M-R, D66MX-R]

id0510mf160100

Replacement Part

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the starter interlock switch connector.

ac5wzw00010590

3.  Remove the starter interlock switch using the following procedure. (See Starter Interlock Switch Installation Note.)

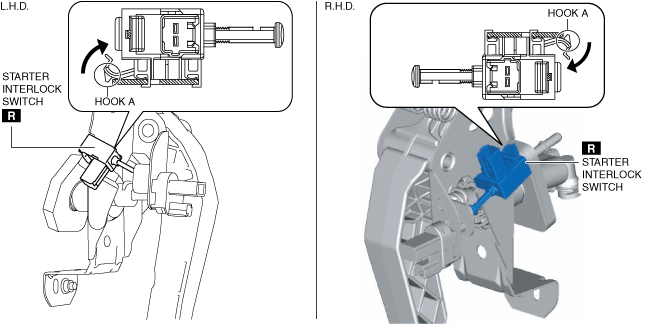

(1)  Detach hook A in the direction of the arrow shown in the figure.

ac5wzw00010591

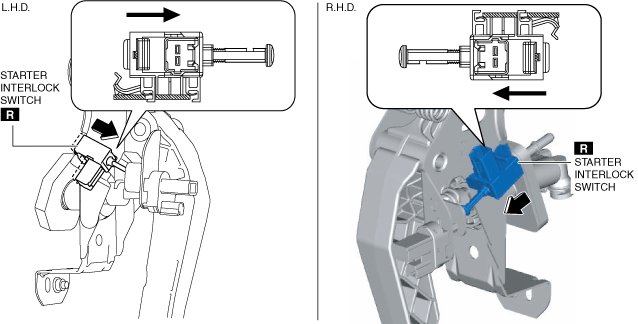

(2)  Slide the starter interlock switch in the direction of the arrow shown in the figure.

ac5wzw00010592

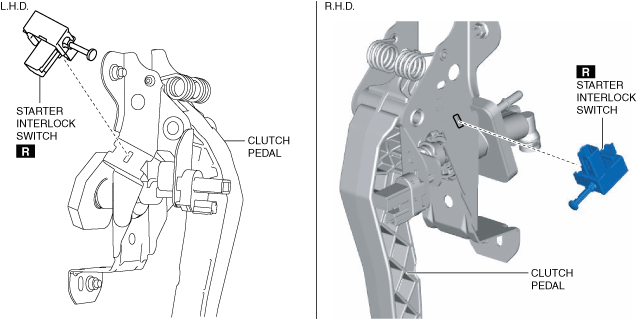

(3)  Remove the starter interlock switch from the clutch pedal.

ac5wzw00010593

4.  Install in the reverse order of removal.

5.  Fully depress the clutch pedal, and verify that the engine starts.

Starter Interlock Switch Installation Note

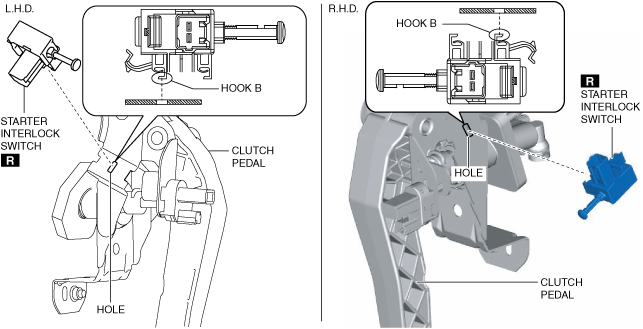

1.  Insert hook B of a new starter interlock switch into the clutch pedal hole.

ac5wzw00010594

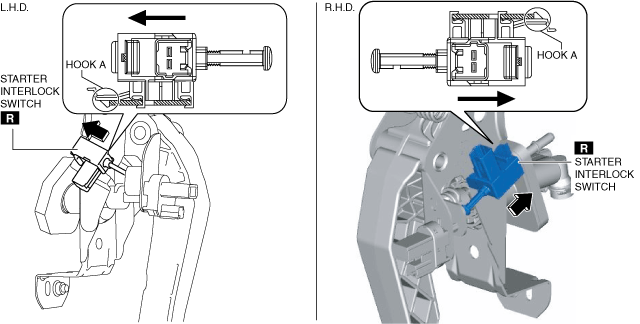

2.  While pressing the starter interlock switch against the clutch pedal, slide the starter interlock switch until hook A is locked in the direction of the arrow shown in the figure.

ac5wzw00010595

3.  Fully depress the clutch pedal in the direction of arrow, and verify that a click sound from the starter interlock switch is heard.

ac5wzw00010596
